Hard top jaws for independent chucks Ø 500/630 mm

€668.25 *
€795.22 incl. VAT

Prices plus VAT plus shipping costs

Delivery time upon request

  • 398573670000
  • 84662091
  • 12 kg
  • 0
Hard top jaws for Bison independent chucks Ø 500/630 mm - material: steel - 4 pieces/set more
Product information "Hard top jaws for independent chucks Ø 500/630 mm"

Hard top jaws for Bison
independent chucks Ø 500/630 mm

- material: steel
- 4 pieces/set

Make: Bison
Jaws: Hard top jaws
Jaws for Ø: 500 mm, 630 mm
Related links to "Hard top jaws for independent chucks Ø 500/630 mm"

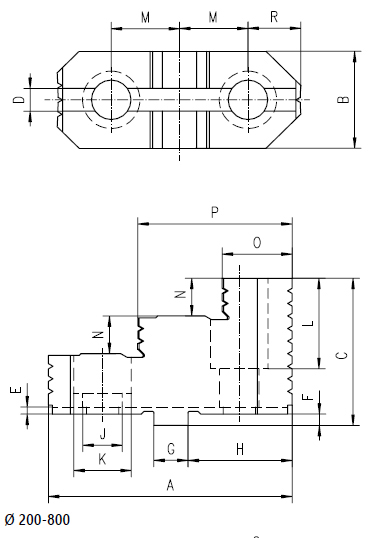

Futtergröße / Chuck size A B C D E F G H J K L M N O P R... more
Futtergröße /
Chuck size
A B C D E F G H J K L M N O P R kg pro Stück /
kg per piece
200 82,0 34 43,5 7,95 4 3,2 12,69 35,2 11 18 21,5 22,25 9,5 22,0 53,0 19,3 0,5
250 96,5 34 51,5 12,71 4 3,2 19,04 40,0 14 20 26,5 27,00 12,0 25,0 62,0 22,5 0,7
315 112,5 42 55,0 12,71 4 3,2 19,04 47,9 14 20 27,5 31,75 13,0 27,0 70,5 25,7 1,3
400 129,0 42 64,5 12,71 4 6,3 19,04 57,4 18 26 32,0 38,10 13,5 26,5 79,0 28,8 2,1
500 / 630 136,0 54 82,0 12,71 4 6,3 19,04 58,0 22 33 43,0 38,10 21,0 37,5 87,0 29,4 3,0
800 136,0 72 88,0 12,71 4 6,3 19,04 58,0 22 33 46,0 38,10 24,0 40,0 98,0 29,4 4,2

Angaben ohne Gewähr, technische Änderungen vorbehalten /
Information provided without guarantee, technical changes reserved
