Hard top jaws for independent chucks Ø 800 mm

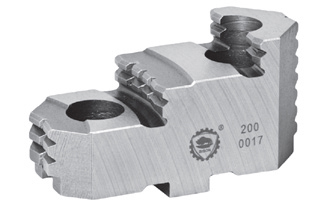

Preview: Hard top jaws for independent chucks Ø 800 mm Preview: Drawing Hard top jaws for independent chucks Ø 800 mm
Hard top jaws for independent chucks Ø 800 mm

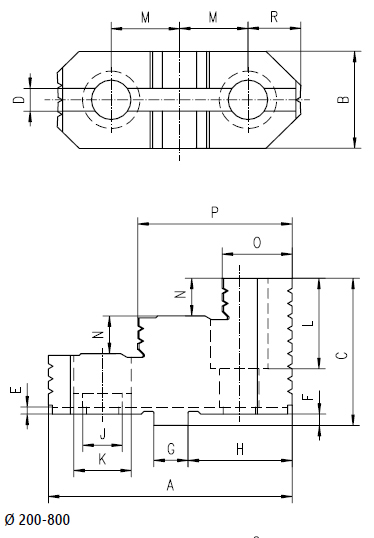

Drawing Hard top jaws for independent chucks Ø 800 mm

Preis auf Anfrage

Prices plus VAT plus shipping costs

Lieferzeit auf Anfrage
Preis jetzt anfragen
  • Order number: 398573680100
  • Customs tariff number: 84662091
  • Open text field 2: 1
  • European article number:
  • Weight: 16,8 kg
  • In stock: 0
Description Technical data Evaluations 0
Description
Hard top jaws for Bison independent chucks Ø 800 mm - material: steel - 4 pieces/set more
Close menu
Product information "Hard top jaws for independent chucks Ø 800 mm"

Hard top jaws for Bison
independent chucks Ø 800 mm

- material: steel
- 4 pieces/set

Make: Bison
Jaws: Hard top jaws
Jaws for Ø: 630 mm
Related links to "Hard top jaws for independent chucks Ø 800 mm"

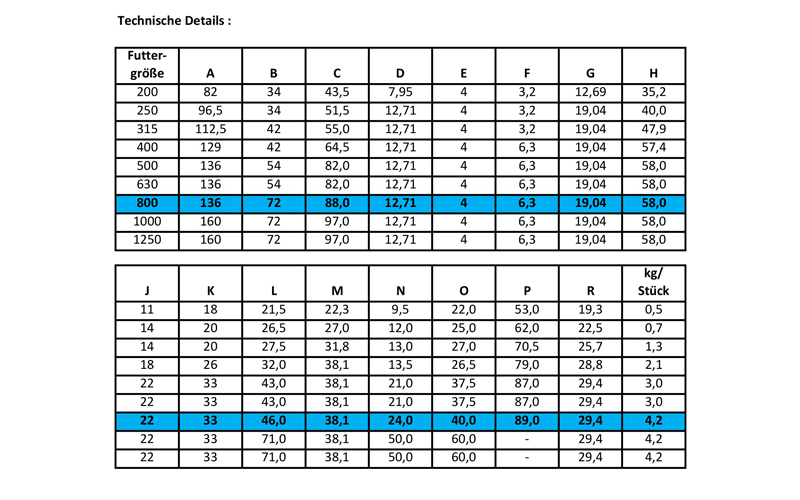

Technical data
Futtergröße / Chuck size A B C D E F G H J K L M N O P R... more
Zurück
Futtergröße /
Chuck size		 A B C D E F G H J K L M N O P R kg pro Stück /
kg per piece
200 82,0 34 43,5 7,95 4 3,2 12,69 35,2 11 18 21,5 22,25 9,5 22,0 53,0 19,3 0,5
250 96,5 34 51,5 12,71 4 3,2 19,04 40,0 14 20 26,5 27,00 12,0 25,0 62,0 22,5 0,7
315 112,5 42 55,0 12,71 4 3,2 19,04 47,9 14 20 27,5 31,75 13,0 27,0 70,5 25,7 1,3
400 129,0 42 64,5 12,71 4 6,3 19,04 57,4 18 26 32,0 38,10 13,5 26,5 79,0 28,8 2,1
500 / 630 136,0 54 82,0 12,71 4 6,3 19,04 58,0 22 33 43,0 38,10 21,0 37,5 87,0 29,4 3,0
800 136,0 72 88,0 12,71 4 6,3 19,04 58,0 22 33 46,0 38,10 24,0 40,0 98,0 29,4 4,2

Angaben ohne Gewähr, technische Änderungen vorbehalten /
Information provided without guarantee, technical changes reserved
