Soft solid jaws for independent chucks Ø 200 mm

Preview: Soft solid jaws for independent chucks Ø 200 mm Preview: Drawing Soft solid jaws for independent chucks Ø 200 mm
Soft solid jaws for independent chucks Ø 200 mm

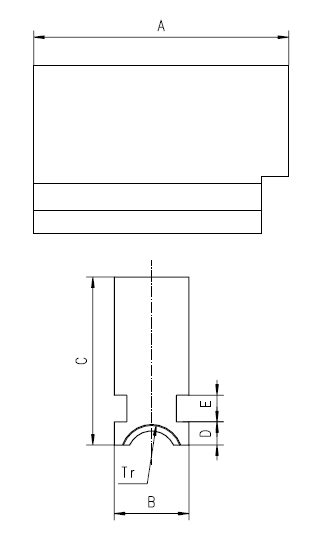

Drawing Soft solid jaws for independent chucks Ø 200 mm

€321.00 *
€381.99 incl. VAT

Prices plus VAT plus shipping costs

Delivery time upon request

  • Order number: 398573020500
  • Customs tariff number: 84662091
  • European article number:
  • Weight: 2,8 kg
  • In stock: 0
Description Technical data Evaluations 0
Description
Soft solid jaws for Bison independent chucks Ø 200 mm - material: steel - 4 pieces/set more
Close menu
Product information "Soft solid jaws for independent chucks Ø 200 mm"

Soft solid jaws for Bison
independent chucks Ø 200 mm

- material: steel
- 4 pieces/set

Make: Bison
Jaws: Soft solid jaws
Jaws for Ø: 200 mm
Related links to "Soft solid jaws for independent chucks Ø 200 mm"
Technical data

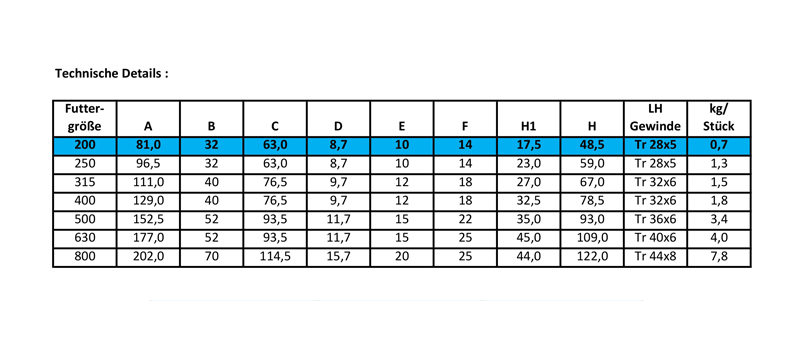

Futtergröße / Chuck size A B C D E F H1 H... more
Zurück
Futtergröße /
Chuck size		 A B C D E F H1 H LH Gewinde /
LH Thread		 kg pro Stück /
kg per piece
200 81,0 32 63,0 8,7 10 14 17,5 48,5 Tr 28x5 0,7
250 96,5 32 63,0 8,7 10 14 23,0 59,0 Tr 28x5 1,3
315 111,0 40 76,5 9,7 12 18 27,0 67,0 Tr 32x6 1,5
400 129,0 40 76,5 9,7 12 18 32,5 78,5 Tr 32x6 1,8
500 152,5 52 93,5 11,7 15 22 35,0 93,0 Tr 36x6 3,4
630 177,0 52 93,5 11,7 15 25 45,0 109,0 Tr 40x6 4,0
800 202,0 70 114,5 15,7 20 25 44,0 122,0 Tr 44x8 7,8

Angaben ohne Gewähr, technische Änderungen vorbehalten /
Information provided without guarantee, technical changes reserved
