Soft solid jaws for independent chucks Ø 500 mm

€657.75 *
€782.72 incl. VAT

Prices plus VAT plus shipping costs

Delivery time upon request

  • 398573060200
  • 84662091
  • 13,6 kg
  • 0
Soft solid jaws for Bison independent chucks Ø 500 mm - material: steel - 4 pieces/set more
Product information "Soft solid jaws for independent chucks Ø 500 mm"

Soft solid jaws for Bison
independent chucks Ø 500 mm

- material: steel
- 4 pieces/set

Make: Bison
Jaws: Soft solid jaws
Jaws for Ø: 500 mm
Related links to "Soft solid jaws for independent chucks Ø 500 mm"

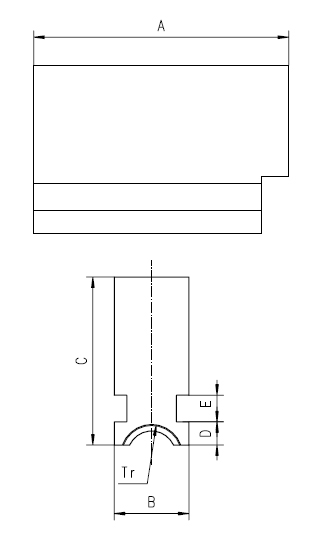

Futtergröße / Chuck size A B C D E F H1 H LH Gewinde / LH Thread kg... more
Futtergröße /
Chuck size
A B C D E F H1 H LH Gewinde /
LH Thread
kg pro Stück /
kg per piece
200 81,0 32 63,0 8,7 10 14 17,5 48,5 Tr 28x5 0,7
250 96,5 32 63,0 8,7 10 14 23,0 59,0 Tr 28x5 1,3
315 111,0 40 76,5 9,7 12 18 27,0 67,0 Tr 32x6 1,5
400 129,0 40 76,5 9,7 12 18 32,5 78,5 Tr 32x6 1,8
500 152,5 52 93,5 11,7 15 22 35,0 93,0 Tr 36x6 3,4
630 177,0 52 93,5 11,7 15 25 45,0 109,0 Tr 40x6 4,0
800 202,0 70 114,5 15,7 20 25 44,0 122,0 Tr 44x8 7,8

Angaben ohne Gewähr, technische Änderungen vorbehalten /
Information provided without guarantee, technical changes reserved
