Soft solid jaws for independent chucks Ø 800 mm

Preview: Soft solid jaws for independent chucks Ø 800 mm Preview: Drawing Soft solid jaws for independent chucks Ø 800 mm
Soft solid jaws for independent chucks Ø 800 mm

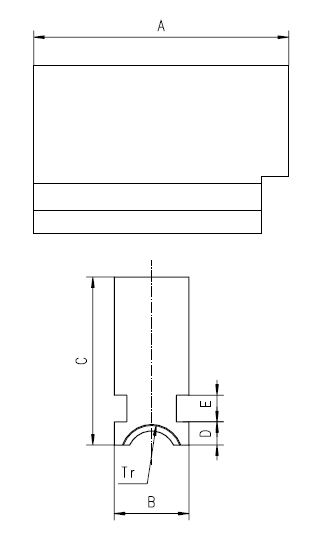

Drawing Soft solid jaws for independent chucks Ø 800 mm

Preis auf Anfrage

Prices plus VAT plus shipping costs

Lieferzeit auf Anfrage
Preis jetzt anfragen
  • Order number: 398573080600
  • Customs tariff number: 84662091
  • Open text field 2: 1
  • European article number:
  • Weight: 31,2 kg
  • In stock: 0
Description Technical data Evaluations 0
Description
Soft solid jaws for Bison independent chucks Ø 800 mm - material: steel - 4 pieces/set more
Close menu
Product information "Soft solid jaws for independent chucks Ø 800 mm"

Soft solid jaws for Bison
independent chucks Ø 800 mm

- material: steel
- 4 pieces/set

Make: Bison
Jaws: Soft solid jaws
Jaws for Ø: 800 mm
Related links to "Soft solid jaws for independent chucks Ø 800 mm"
Technical data
Futtergröße / Chuck size A B C D E F H1 H LH Gewinde / LH Thread kg... more
Zurück
Futtergröße /
Chuck size		 A B C D E F H1 H LH Gewinde /
LH Thread		 kg pro Stück /
kg per piece
200 81,0 32 63,0 8,7 10 14 17,5 48,5 Tr 28x5 0,7
250 96,5 32 63,0 8,7 10 14 23,0 59,0 Tr 28x5 1,3
315 111,0 40 76,5 9,7 12 18 27,0 67,0 Tr 32x6 1,5
400 129,0 40 76,5 9,7 12 18 32,5 78,5 Tr 32x6 1,8
500 152,5 52 93,5 11,7 15 22 35,0 93,0 Tr 36x6 3,4
630 177,0 52 93,5 11,7 15 25 45,0 109,0 Tr 40x6 4,0
800 202,0 70 114,5 15,7 20 25 44,0 122,0 Tr 44x8 7,8

Angaben ohne Gewähr, technische Änderungen vorbehalten /
Information provided without guarantee, technical changes reserved
