Independent chuck, centre mount Ø 500 mm

Preview: Independent chuck, centre mount Ø 500 mm Preview: Drawing Independent chuck, centre mount Ø 500 mm
Independent chuck, centre mount Ø 500 mm

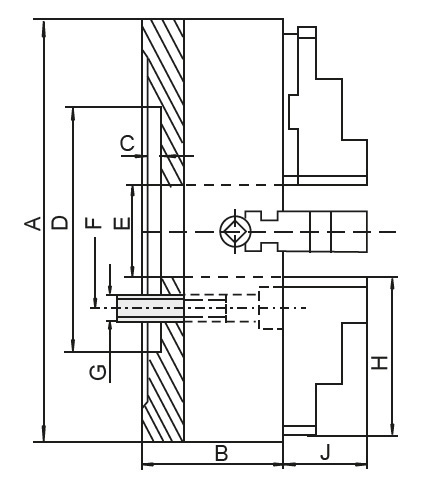

Drawing Independent chuck, centre mount Ø 500 mm

€951.84 *
€1,132.69 incl. VAT

Prices plus VAT plus shipping costs

Ready to ship today,
Delivery time appr. 1-3 workdays

  • Order number: ZE-4100-500
  • Customs tariff number: 8466 2091
  • European article number: 4049794047262
  • Weight: 130 kg
  • In stock: 2
Description Technical data Evaluations 0
Description
Independent chuck, centre mount Ø 500 mm, one-piece jaws - chuck body made from cast iron... more
Close menu
Product information "Independent chuck, centre mount Ø 500 mm"

Independent chuck, centre mount Ø 500 mm, one-piece jaws

- chuck body made from cast iron
- with 4 individually adjustable jaws
- especially suitable for holding irregulary
  shaped work pieces
- inkl. 1 set hardened reversible jaws,
  wrench, fixing screws

Ø : 500 mm
DIN: centre mount
Jaws: one-piece jaws
Material: Cast iron
Make: Zentra
Related links to "Independent chuck, centre mount Ø 500 mm"
Technical data
A (Ø) mm B mm C mm D mm E mm F mm G mm H mm J mm... more
Zurück
A (Ø)
mm		B
mm		C
mm		D
mm		E
mm		F
mm		G
mm		H
mm		J
mm		RPM MAX
min -1		kg
80423,55522664xM6331630001,9
1005447225844xM8422330002,4
125564,595301084xM8532225005
1606556545954xM1061,531,520007,5
2007567556954xM108535180010
25085715065104,84xM129240,3150025
31585717580133,44xM1611149,8120039
40010510200100171,44xM1612949,880061
500120122701252354xM20152,559,8500105
630140122701602354xM2017759,8400211
800145122502103008xM2020270,8300319

Inkl. je 1 Satz einteiliger Umkehrbacken, Spannschlüssel, Befestigungsschrauben /
Incl. 1 set hardened reversible jaws, wrench, fixing screws

Angaben ohne Gewähr, technische Änderungen vorbehalten /
Information provided without guarantee, technical changes reserved
Evaluations 0
Read, write and discuss reviews... more
Close menu
Customer evaluation for "Independent chuck, centre mount Ø 500 mm"
Write an evaluation
Evaluations will be activated after verification.
Please enter these characters in the following text field.

The fields marked with * are required.
