Precision rotary table MT 4, type 406
€1,260.36*
Available, delivery time: 1-3 workdays
Product information "Precision rotary table MT 4, type 406"
Precision rotary table type 406, MT 4
- for horizontal and vertical applications
- ratio 90:1
- 360° graduation, 1' graduation, with vernier 10'',
feed 4° per rotation
- parallelism 0,02 mm, squareness 0,02 mm, runout 0,015 mm

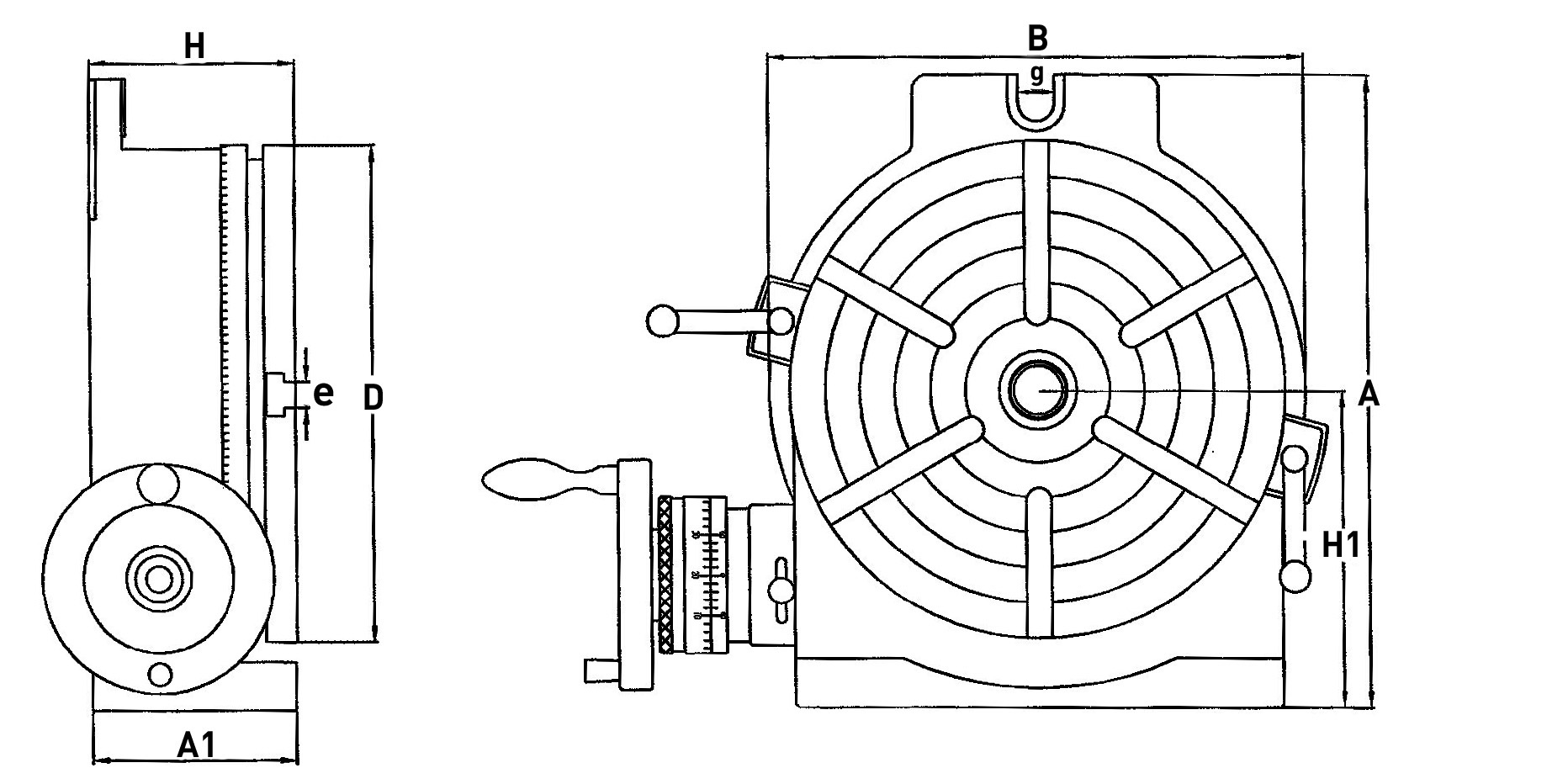

Technical Data
| Typ / Type | MK / MT | A mm | C mm | B mm | D mm | e mm | H mm | J mm | Nuten / Slots | Nut (g) / Slot (g) mm | Max. Belastung Hor. / Max. load cap. hor. kg | Max. Belastung Vert. / Max. load cap. vert. kg |
| 110 | 2 | 138 | 58 | 118 | 110 | 11 | 72 | 80 | 3 | - | 35 | 18 |
| 150 | 2 | 205 | 78 | 163 | 150 | 11 | 80 | 102 | 3 | 17 | 40 | 20 |
| 200 | 3 | 265 | 100 | 219 | 205 | 14 | 102 | 135 | 3 | 17 | 80 | 40 |
| 250 | 3 | 321 | 106 | 276 | 254 | 14 | 109 | 163 | 6 | 17 | 90 | 50 |
| 300 | 4 | 388 | 123 | 330 | 305 | 16 | 125 | 194 | 6 | 17 | 120 | 60 |
| 350 | 4 | 445 | 123 | 389 | 353 | 16 | 125 | 225 | 6 | 17 | 130 | 70 |
| 406 | 4 | 503 | 128 | 435 | 406 | 16 | 130 | 255 | 6 | 17 | 140 | 70 |
| Angaben ohne Gewähr, technische Änderungen vorbehalten / Information provided without guarantee, technical changes reserved | ||||||||||||
Product Safety Information:
- Suitable only for technically skilled users familiar with the product and for craftsmen.
- Intended solely for the designated purpose.
- Improper use may lead to damage and injuries.
Importer/Manufacturer:
Gedema GmbH
Berchumer Str. 74
58093 Hagen
Email: info@messwelt.com
Email: info@gedema.com
Items explicitly stating the manufacturer are excluded.
