Semi-universal dividing head HUT, type 128
Product number:
ZE-HUT-2
Customs tariff number
8466 3000
European Article Number
4049794051467
Weight
33,3 kg
Stock:
0
Related links:
Request Item
Product information "Semi-universal dividing head HUT, type 128"

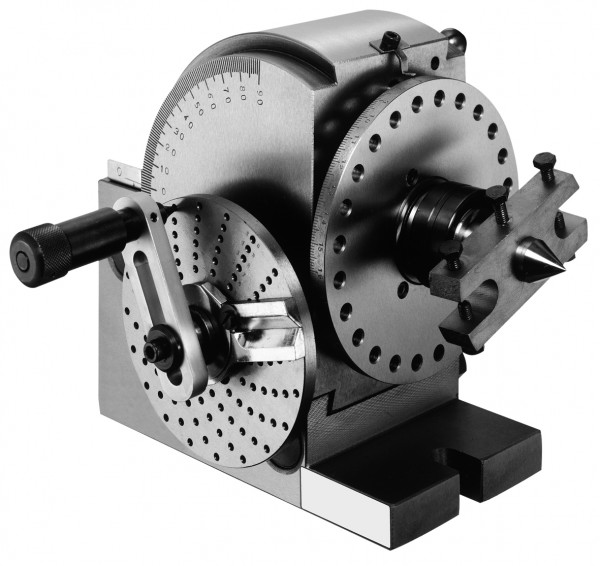

Semi-universal dividing head HUT-2, MT 3
- direct indexing in 2, 3, 4, 6, 8, 12 and 24 sections
- horizontally / vertically tiltable from -10° to +90°
- indirect indexing of all numbers from 2 to 50
and many numbers up to 380 (ratio 1:40)

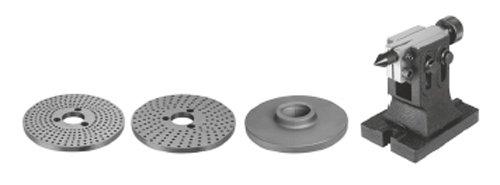

- incl. tailstock (ZE-RSV-145), adaptor plate and 2 dividing plates

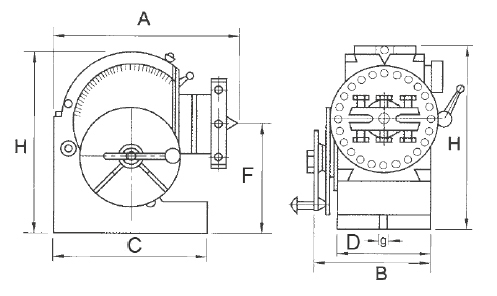

Technical Data
| F mm | MK / MT | A mm | B mm | H mm | C mm | D mm | Nut (g) / Slot (g) mm | Spindel / Spindle Ø | Flansch / Adaptor Ø | inkl. Reitstock / incl. Tailstock | kg |
| 100 | 2 | 196 | 133 | 173 | 160 | 91 | 16 | 16 | 100 | RSV-108 | 22 |
| 126 | 3 | 253 | 163 | 220 | 207 | 114 | 16 | 20 | 130 | RSV-145 | 36 |
| Inkl. Reitstock, Flansch und 2 Teilscheiben / Incl. tailstock, adaptor plate and 2 diving plates | |||||||||||
| Angaben ohne Gewähr, technische Änderungen vorbehalten / Information provided without guarantee, technical changes reserved | |||||||||||
Product Safety Information:
- Suitable only for technically skilled users familiar with the product and for craftsmen.
- Intended solely for the designated purpose.
- Improper use may lead to damage and injuries.
Importer/Manufacturer:
Gedema GmbH
Berchumer Str. 74
58093 Hagen
Email: info@messwelt.com
Email: info@gedema.com
Items explicitly stating the manufacturer are excluded.
Skip product gallery
Accessories
Tailstock type RSV-145
€144.14*
Tailstock RSV-145 for rotary tables and dividing heads
- height adjustable - suitable for: ZE-HUT-2, ZE-TA-165, ZE-TAK-165, ZE-RT-200
Stock: 4
