Super indexing spacer with hand wheel, type 165

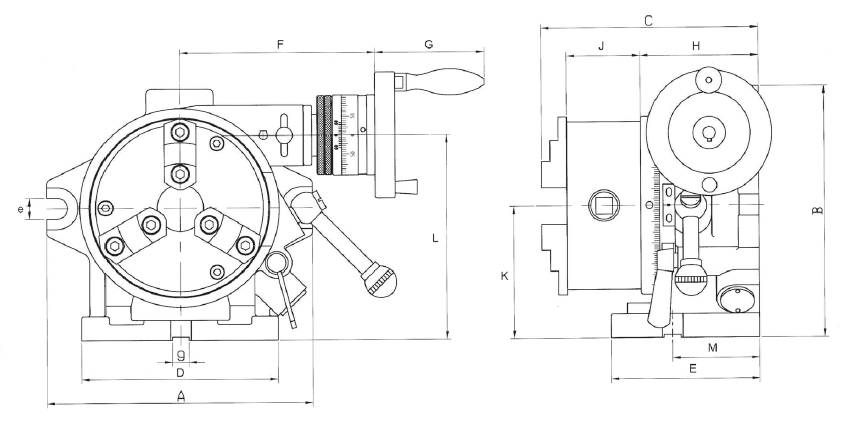

Drawing Super indexing spacer with hand wheel, type 165

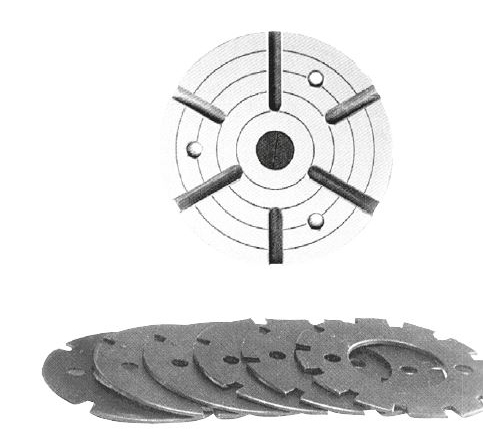

Accessories Super indexing spacer with hand wheel, type 165

€809.21*

€962.96 incl. Vat.

Prices plus VAT plus shipping costs

Available, delivery time: 1-3 workdays

Product number: ZE-TAK-165

Customs tariff number 8466 3000

European Article Number 4049794053867

Weight 44 kg

Stock: 5

Related links:

Request Item

Product information "Super indexing spacer with hand wheel, type 165"

Super indexing spacer type 165 with hand wheel

- for horizontal and vertical applications
- ratio 90:1,
1‘ graduation, with vernier 10"
- index graduation in 2, 3, 4, 6, 8, 12 and 24 sections
- incl. three-jaw lathe chuck,
face plate and masking plates

Technical Data

Futter / Chuck

Aufspannscheibe /
Face plate

Typ /
Type

Teilung /
Division

Ø

Spannbereich /
Clamp. Range

Bohrung-Ø /
Hole-Ø

Ø

Dicke /
Thickness

A
mm

D
mm

B
mm

C
mm

165

2-24

160

4-156

44

203

50

250

220

235

221

200

2-24

210

4-180

58

254

58

310

225

285

243

Typ / Type	E mm	F mm	G mm	H mm	J mm	K mm	L mm	M mm	e mm	Nut (g) / Slot (g) mm	kg
165	150	184	82	112	66	123	186	80	18	16	45
200	160	201	82	125	75	155	232	90	18	16	79

Inkl. Dreibacken-Drehfutter, Aufspannscheibe und Rastplatten / Incl. 3-jaw lathe chuck, face plate and masking plates

Angaben ohne Gewähr, technische Änderungen vorbehalten / Information provided without guarantee, technical changes reserved

Product Safety Information:

Suitable only for technically skilled users familiar with the product and for craftsmen.
Intended solely for the designated purpose.
Improper use may lead to damage and injuries.

Importer/Manufacturer:

Gedema GmbH
Berchumer Str. 74
58093 Hagen

Email: info@messwelt.com
Email: info@gedema.com

Items explicitly stating the manufacturer are excluded.
