Jaw turning fixture for chucks 160-250 mm

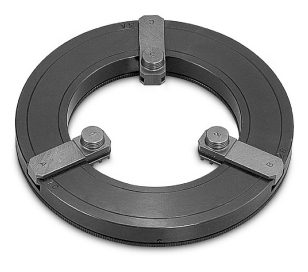

Preview: Jaw turning fixture for chucks 160-250 mm Preview: Drawing Jaw turning fixture for chucks 160-250 mm
Jaw turning fixture for chucks 160-250 mm

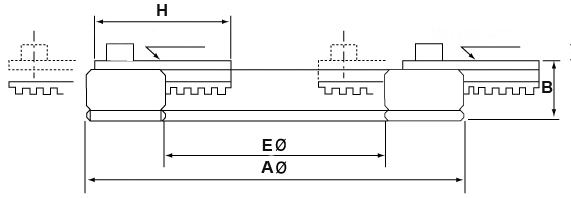

Drawing Jaw turning fixture for chucks 160-250 mm

€438.98 *
€522.39 incl. VAT

Prices plus VAT plus shipping costs

Ready to ship today,
Delivery time appr. 1-3 workdays

  • Order number: ZE-ADP3-250
  • Customs tariff number: 8466 2091
  • European article number: 4049794060476
  • Weight: 4 kg
  • In stock: 4
Description Technical data Product Safety Information Evaluations 0
Description
Jaw turning fixture for three-jaw scroll chucks Ø  160 - 250 mm more
Close menu
Product information "Jaw turning fixture for chucks 160-250 mm"

Jaw turning fixture for three-jaw scroll chucks Ø 160 - 250 mm

Related links to "Jaw turning fixture for chucks 160-250 mm"
Technical data
Für Futter / For chuck E Ø mm A Ø mm B mm H mm Eingangsbereiche / adjusting... more
Zurück
Für Futter /
For chuck		 E Ø
mm		 A Ø
mm		 B
mm		 H
mm		 Eingangsbereiche /
adjusting ranges mm		 Max. Spannkraft /
Max. gripping force (kN)		 Max. Drehzahl /
Max. speed (min-1)		 kg
Ø 125 - 200 100 170 26 61 56-124 / 134-200 14,7 800 3
Ø 160 - 250 125 200 26 61 85-150 / 170-230 14,7 700 4
Ø 200 - 315 160 248 31 80 100-190 / 220-300 17,1 600 6

Angaben ohne Gewähr, technische Änderungen vorbehalten /
Information provided without guarantee, technical changes reserved
