Jaw turning rings for 6-jaw chucks, Ø 200-500 mm

Jaw turning rings for 6-jaw chucks, Ø 200-500 mm
Preis auf Anfrage

Prices plus VAT plus shipping costs

Lieferzeit auf Anfrage
Preis jetzt anfragen
  • Order number: 24-61508-XL
  • Customs tariff number: 8466 2091
  • Open text field 2: 1
  • European article number: 4049794072721
  • Weight: 27 kg
  • In stock: 0
Description Technical data Evaluations 0
Description
Jaw turning rings for 6-jaw lathe chucks, up to Ø 500 mm - set, size: XL-6 - range: Ø =... more
Close menu
Product information "Jaw turning rings for 6-jaw chucks, Ø 200-500 mm"

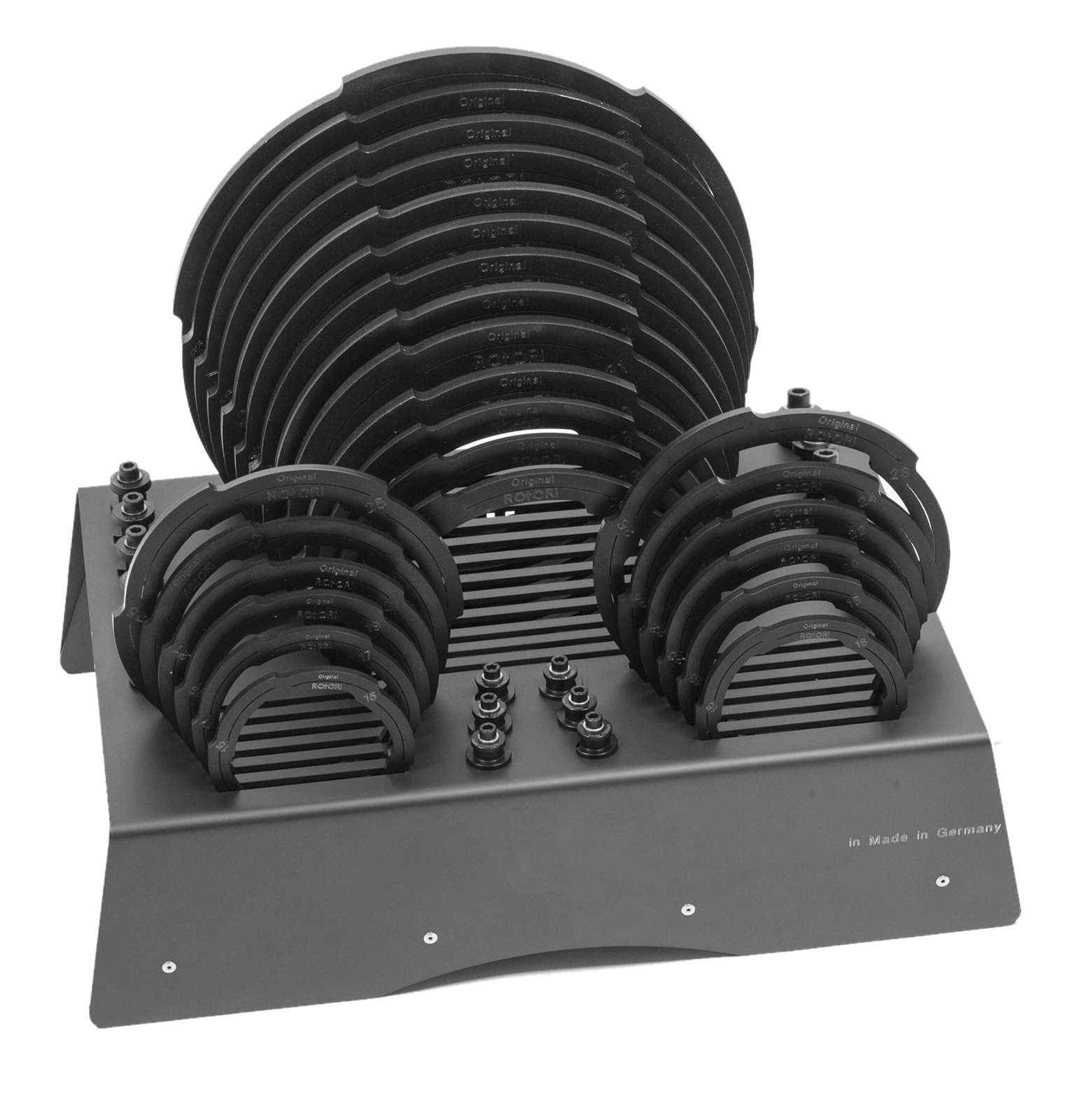

Jaw turning rings for 6-jaw lathe chucks, up to Ø 500 mm

- set, size: XL-6
- range: Ø = 200-500 mm
- rings: 25
- incl. clamping pins: 6 x M10 / 6 x M12 / 6 x M16

- internal and external clamping with only 1 ring
- infinitely adjustable clamping range for all chucks
- exact adjustment of boring diameter (1/10 mm precision)
- easy of handling
- less clamping jaws required
- reduced set up times

This set comprises individual rings from hardened
special-purpose steel each consisting of 3 curved segments (3 x 120°)
to be arranged both at the inner and outer circumference.
These patented rings allow to turn-out jaws to a
maximum precision. Thanks to an infinite adjustability it is
possible to remove an exact amount of material thus
saving set up time and costs.

Related links to "Jaw turning rings for 6-jaw chucks, Ø 200-500 mm"
Technical data
Größe / Size Ringe / Rings Spannbolzen inkl. / incl. clamping pins... more
Zurück
Größe /
Size		 Ringe /
Rings		 Spannbolzen inkl. /
incl. clamping pins		 Arbeitsbereich /
Range
L-6 29* Je / each 6 x M8 / M10 / M12 Ø = 80-250 mm
XL-6 25** Je / each 6 x M10 / M12 / M16 Ø = 200-500 mm

* Ringe 6 mm / rings 6 mm
** 15 Ringe 6 mm, 10 Ringe 10 mm / 15 rings 6 mm, 10 rings 10 mm

Angaben ohne Gewähr, technische Änderungen vorbehalten /
Information provided without guarantee, technical changes reserved
