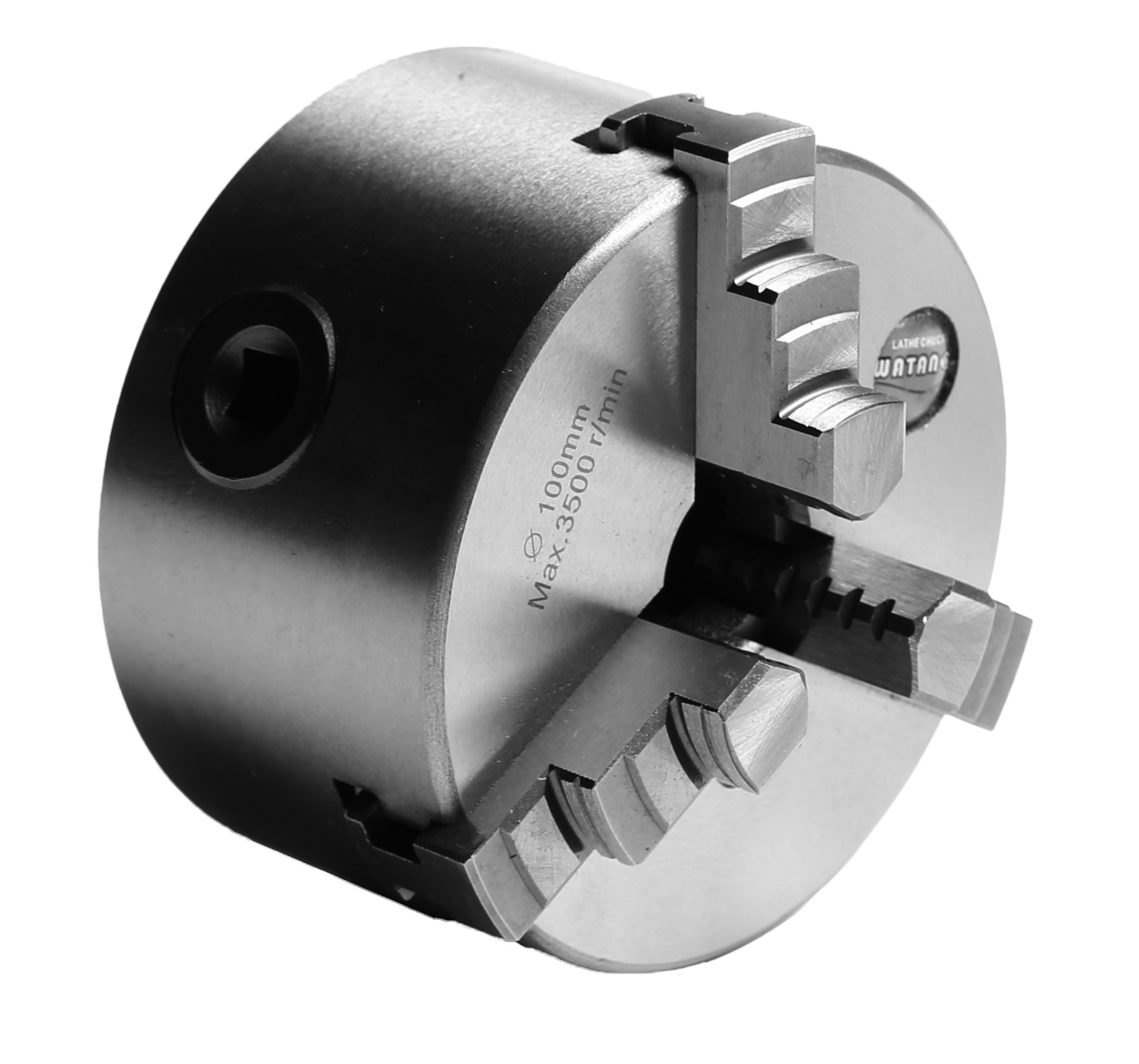

Three-jaw lathe chuck Basic Ø 630 mm

€3,796.99 *
€4,518.42 incl. VAT

Prices plus VAT plus shipping costs

Delivery time upon request

  • WAT-D630/3-ZGE
  • 8466 2091
  • 4049794671153
  • 200 kg
  • 0
Three-jaw lathe chuck Basic - centre mount acc. to factory standard, one-piece jaws - chuck... more
Product information "Three-jaw lathe chuck Basic Ø 630 mm"

Three-jaw lathe chuck Basic

- centre mount acc. to factory standard, one-piece jaws
- chuck body made from cast iron
- self-centering
- inkl. 1 set each of solid jaws internally / externally stepped,
  wrench, fixing screws

Type: 3-jaw lathe chucks
Ø : 630 mm
DIN: centre mount acc. to factory standard
Jaws: one-piece jaws
Material: Cast iron
Make: Basic
Related links to "Three-jaw lathe chuck Basic Ø 630 mm"

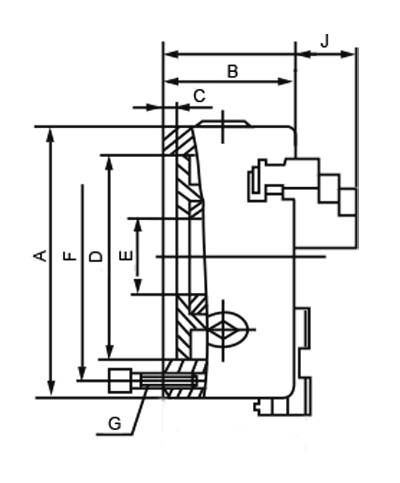

A (Ø) mm D mm F mm E mm J mm B mm C mm G mm Rundlauf... more
A (Ø)
mm
D
mm
F
mm
E
mm
J
mm
B
mm
C
mm
G
mm
Rundlauf /
Runout Ø
RPM MAX
min -1
kg
8055661616,55043-M60,0840002
10072842219,55533-M80,0835003
125951083026,55843-M80,0830005
16013014245296553-M80,0825009
20016518065347553-M100,1200016
25020622680408053-M120,1160028
31526028510057,59063-M160,12120047
40034036813073,510063-M160,12100073
5004404652108711563-M160,16800121
63056059526089,513173-M160,16800200

Inkl. je 1 Satz Dreh- und Bohrbacken, Spannschlüssel, Befestigungsschrauben /
Incl. 1 set each of solid jaws internally / externally stepped, wrench, fixing screws

Angaben ohne Gewähr, technische Änderungen vorbehalten /
Information provided without guarantee, technical changes reserved
