Three-jaw lathe chuck Basic Ø 125 mm

€78.12 *
€92.96 incl. VAT

Prices plus VAT plus shipping costs

Ready to ship today,
Delivery time appr. 1-3 workdays

  • WAT-D125/3-ZGE
  • 8466 2091
  • 4049794671085
  • 5 kg
  • 25
Three-jaw lathe chuck Basic - centre mount acc. to factory standard, one-piece jaws - chuck... more
Product information "Three-jaw lathe chuck Basic Ø 125 mm"

Three-jaw lathe chuck Basic

- centre mount acc. to factory standard, one-piece jaws
- chuck body made from cast iron
- self-centering
- inkl. 1 set each of solid jaws internally / externally stepped,
  wrench, fixing screws

Type: 3-jaw lathe chucks
Ø : 125 mm
DIN: centre mount acc. to factory standard
Jaws: one-piece jaws
Material: Cast iron
Make: Basic
Related links to "Three-jaw lathe chuck Basic Ø 125 mm"

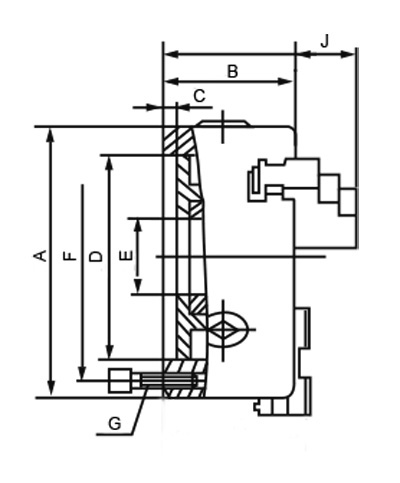

A (Ø) mm D mm F mm E mm J mm B mm C mm G mm... more
A (Ø)
mm
D
mm
F
mm
E
mm
J
mm
B
mm
C
mm
G
mm
Rundlauf /
Runout Ø
RPM MAX
min -1
kg
80 55 66 16 16,5 50 4 3-M6 0,08 4000 2
100 72 84 22 19,5 55 3 3-M8 0,08 3500 3
125 95 108 30 26,5 58 4 3-M8 0,08 3000 5
160 130 142 45 29 65 5 3-M8 0,08 2500 9
200 165 180 65 34 75 5 3-M10 0,1 2000 16
250 206 226 80 40 80 5 3-M12 0,1 1600 28
315 260 285 100 57,5 90 6 3-M16 0,12 1200 47
400 340 368 130 73,5 100 6 3-M16 0,12 1000 73
500 440 465 210 87 115 6 3-M16 0,16 800 121
630 560 595 260 89,5 131 7 3-M16 0,16 800 200

Inkl. je 1 Satz Dreh- und Bohrbacken, Spannschlüssel, Befestigungsschrauben /
Incl. 1 set each of solid jaws internally / externally stepped, wrench, fixing screws

Angaben ohne Gewähr, technische Änderungen vorbehalten /
Information provided without guarantee, technical changes reserved
