Four-jaw lathe chuck Basic Ø 315 mm

Preview: Four-jaw lathe chuck Basic Ø 315 mm Preview: Drawing Four-jaw lathe chuck Basic Ø 315 mm
Four-jaw lathe chuck Basic Ø 315 mm

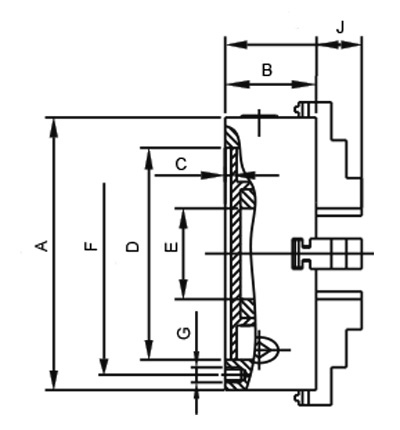

Drawing Four-jaw lathe chuck Basic Ø 315 mm

€490.90 *
€584.17 incl. VAT

Prices plus VAT plus shipping costs

Ready to ship today,
Delivery time appr. 1-3 workdays

  • Order number: WAT-D315/4-ZGE
  • Customs tariff number: 8466 2091
  • European article number: 4049794068243
  • Weight: 47 kg
  • In stock: 3
Description Technical data Evaluations 0
Description
Four-jaw lathe chuck Basic - centre mount acc. to factory standard, one-piece jaws - chuck... more
Close menu
Product information "Four-jaw lathe chuck Basic Ø 315 mm"

Four-jaw lathe chuck Basic

- centre mount acc. to factory standard, one-piece jaws
- chuck body made from cast iron
- self-centering
- inkl. 1 set each of solid jaws internally / externally stepped,
  wrench, fixing screws

Type: 4-jaw lathe chucks
Ø : 315 mm
DIN: centre mount acc. to factory standard
Jaws: one-piece jaws
Material: Cast iron
Make: Basic
Related links to "Four-jaw lathe chuck Basic Ø 315 mm"
Technical data
A (Ø) mm D mm F mm E mm J mm B mm C mm G mm Rundlauf... more
Zurück
A (Ø)
mm		D
mm		F
mm		E
mm		J
mm		B
mm		C
mm		G
mm		Rundlauf /
Runout Ø		RPM MAX
min -1		kg
8055661616,55043-M60,0840002
1007284222153,533-M80,0835003
125951083026,55843-M80,0830005
16013014245296553-M80,0825009
20016518065347553-M100,1200016
25020622680408053-M120,1160028
31526028510057,59063-M160,12120047
40034036813073,510063-M160,12100085
5004404652108711563-M160,16800119

Inkl. je 1 Satz Dreh- und Bohrbacken, Spannschlüssel, Befestigungsschrauben /
Incl. 1 set each of solid jaws internally / externally stepped, wrench, fixing screws

Angaben ohne Gewähr, technische Änderungen vorbehalten /
Information provided without guarantee, technical changes reserved
