Solid jaws for four-jaw lathe chuck Ø 315 mm

Preview: Solid jaws for four-jaw lathe chuck Ø 315 mm Preview: Drawing 1 Solid jaws for four-jaw lathe chuck Ø 315 mm Preview: Drawing 2 Solid jaws for four-jaw lathe chuck Ø 315 mm
Solid jaws for four-jaw lathe chuck Ø 315 mm

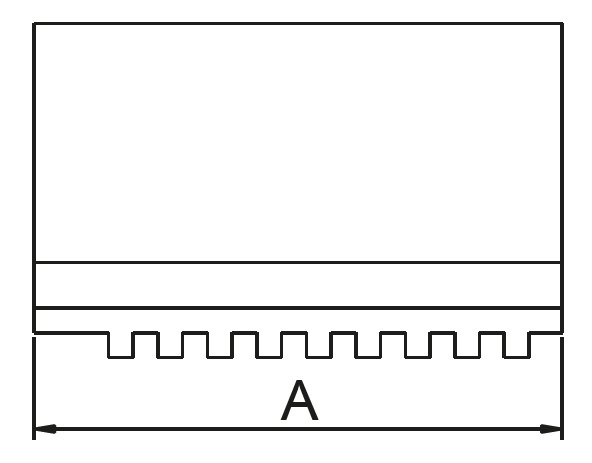

Drawing 1 Solid jaws for four-jaw lathe chuck Ø 315 mm

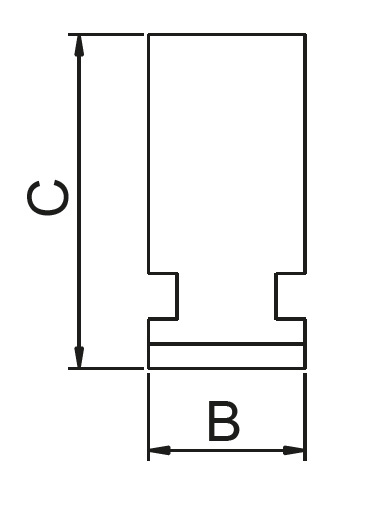

Drawing 2 Solid jaws for four-jaw lathe chuck Ø 315 mm

€178.85 *
€212.83 incl. VAT

Prices plus VAT plus shipping costs

Delivery time upon request

  • Order number: D315/4-MB
  • Customs tariff number: 8466 2091
  • European article number: 4049794661536
  • Weight: 7,8 kg
  • In stock: 0
Description Technical data Evaluations 0
Description
Soft solid jaws for four-jaw lathe chuck Basic - material C45 - 4 pieces per set more
Close menu
Product information "Solid jaws for four-jaw lathe chuck Ø 315 mm"

Soft solid jaws for four-jaw lathe chuck Basic

- material C45
- 4 pieces per set

Make: Basic
Jaws: Soft solid jaws
Jaws for lathe chucks type: 4-jaw lathe chucks
Jaws for Ø: 315 mm
Related links to "Solid jaws for four-jaw lathe chuck Ø 315 mm"
Technical data
Für / for Ø mm A mm B mm C mm 80 32 12 33... more
Zurück
Für / for
Ø mm		 A
mm		 B
mm		 C
mm
80 32 12 33
100 42 15 38
125 56 16 45
160 70 18,5 54
200 85 22 61
250 105 27 69
315 130 36 91
400 138 36 91

Preis pro Satz / Price per set

Angaben ohne Gewähr, technische Änderungen vorbehalten /
Information provided without guarantee, technical changes reserved
