Collet chucks for death length collets 161E

Preview: Collet chucks for death length collets 161E Preview: Drawing Collet chucks for death length collets 161E

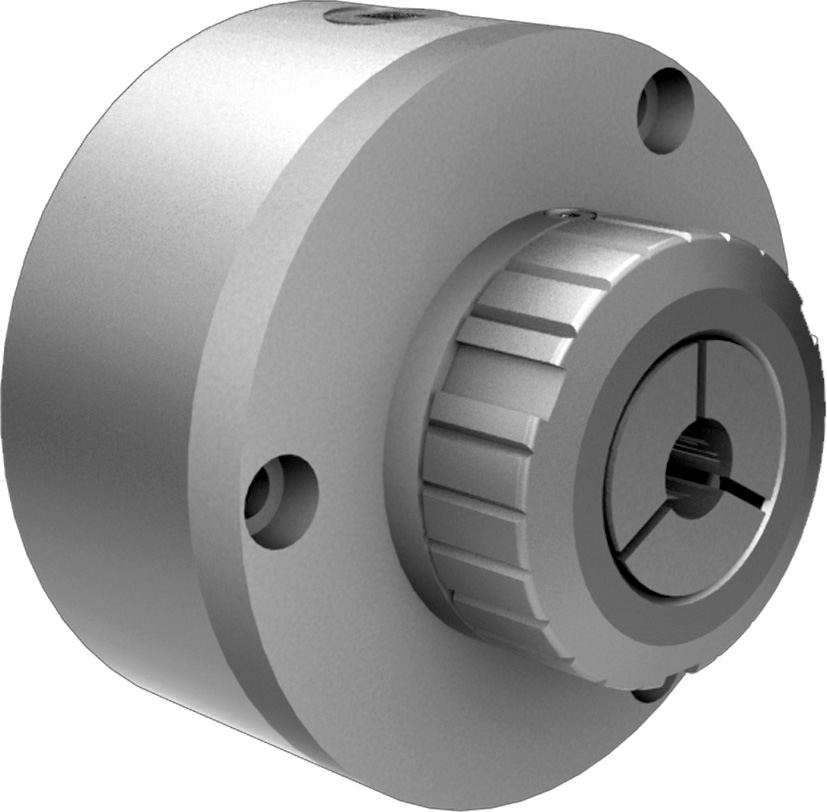

Collet chucks for death length collets 161E

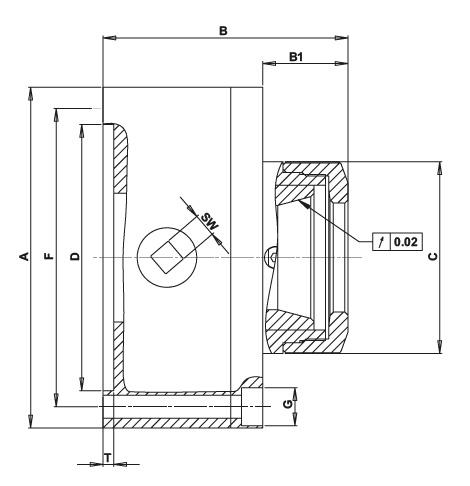

Drawing Collet chucks for death length collets 161E

Preis auf Anfrage

Prices plus VAT plus shipping costs

Lieferzeit auf Anfrage
Preis jetzt anfragen
  • Order number: 79-SZF-161E
  • Customs tariff number: 8466 1038
  • Open text field 2: 1
  • European article number: 4049794053676
  • Weight: 15 kg
  • In stock: 0
Description Technical data Evaluations 0
Description
Collet chucks for death length collets 161E (Bereich 2-26) - manually operated by wrench... more
Close menu
Product information "Collet chucks for death length collets 161E"

Collet chucks
for death length collets 161E (Bereich 2-26)

- manually operated by wrench
- standard mounting DIN 6350
- suitable for turning and grinding
- incl. wrench, hook spanner and fixing screws

Type: Collet chucks
for collets: 161E
Make: Zentra
Related links to "Collet chucks for death length collets 161E"
Technical data
Für SZ / For collet A mm B mm B1 mm C mm D (H6) mm... more
Zurück
Für SZ /
For collet		 A
mm		 B
mm		 B1
mm		 C
mm		 D (H6)
mm		 F
mm		 G Ø T
mm		 SW
mm		 RPM MAX
min-1
161E (2-26) 160 115 40 90 125 140 3x10,5 5 11 4500
163E (2-30) 160 115 40 90 125 140 3x10,5 5 11 4500
164E (2-32) 160 115 40 90 125 140 3x10,5 5 11 4500
173E (3-42) 160 115 40 90 125 140 3x10,5 5 11 4500
185E (4-60) 200 125 78 152 160 176 3x10,5 5 11 4000

Inkl. Betätigungsschlüssel, Hakenschlüssel und Befestigungsschrauben /
Incl. Wrench, hook spanner and fixing screws

Angaben ohne Gewähr, technische Änderungen vorbehalten /
Information provided without guarantee, technical changes reserved
