Collet fixtures for collets ER16

Preview: Collet fixtures for collets ER16 Preview: Drawing Collet fixtures for collets ER16
Collet fixtures for collets ER16

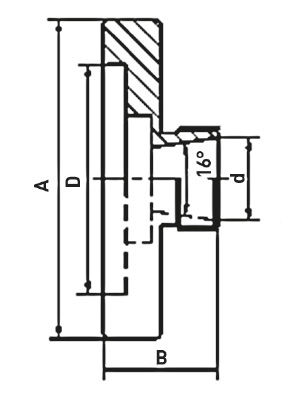

Drawing Collet fixtures for collets ER16

€56.16 *
€66.83 incl. VAT

Prices plus VAT plus shipping costs

Delivery time upon request

  • Order number: ZE-SPV-ER16-045
  • Customs tariff number: 8466 2091
  • European article number: 4049794659298
  • Weight: 0,3 kg
  • In stock: 0
Description Technical data Evaluations 0
Description
Collet fixtures for collets ER16, Ø 45 mm - cylindrical mounting - suitable as stationary... more
Close menu
Product information "Collet fixtures for collets ER16"

Collet fixtures for collets ER16,
Ø 45 mm

- cylindrical mounting
- suitable as stationary clamping device
  or for use in lathe chucks

Type: Collet fixtures
for collets: ER16
Related links to "Collet fixtures for collets ER16"
Technical data
Für SZ / For collets A mm D mm B mm ER 16 45 22... more
Zurück
Für SZ /
For collets		 A
mm		 D
mm		 B
mm
ER 16 45 22 25
ER 25 100 72 36
ER 32 80 55 42
ER 32 125 95 42
Angaben ohne Gewähr, technische Änderungen vorbehalten /
Information provided without guarantee, technical changes reserved
