Pneumatic collet chucks for collets 173E

Preview: Pneumatic collet chucks for collets 173E Preview: Drawing Pneumatic collet chucks for collets 173E
Pneumatic collet chucks for collets 173E

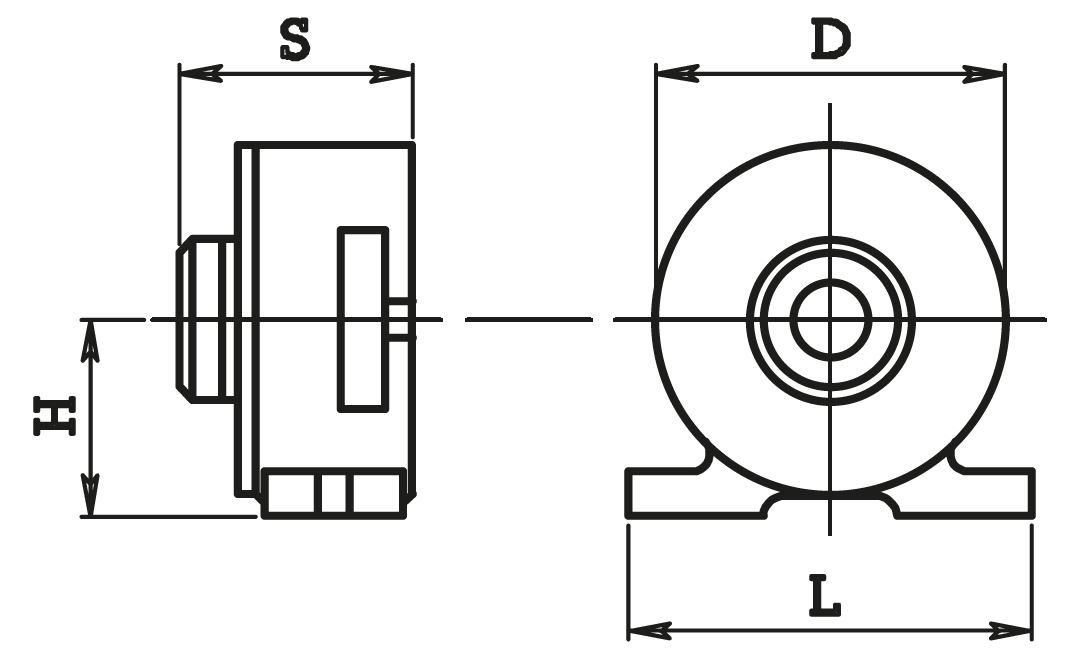

Drawing Pneumatic collet chucks for collets 173E

€1,114.34 *
€1,326.06 incl. VAT

Prices plus VAT plus shipping costs

Ready to ship today,
Delivery time appr. 1-3 workdays

  • Order number: 14-PSF-173E
  • Customs tariff number: 8466 1038
  • European article number: 4049794060728
  • Weight: 13,05 kg
  • In stock: 2
Description Technical data Evaluations 0
Description
Pneumatic collet chuck for dead length collets 173E (3-42) - pneumatic clamping -... more
Close menu
Product information "Pneumatic collet chucks for collets 173E"

Pneumatic collet chuck
for dead length collets 173E (3-42)

- pneumatic clamping
- precise centering of work piece
- for horizontal and vertical application

Type: Collet chucks
for collets: 173E
Make: Zentra
Related links to "Pneumatic collet chucks for collets 173E"
Technical data
Für SZ / For collet D mm H mm L mm S mm Spannkraft / Clamping force bei / per 6... more
Zurück
Für SZ /
For collet		 D
mm		 H
mm		 L
mm		 S
mm		 Spannkraft /
Clamping force
bei / per 6 bar		 Spannkraft /
Clamping force
bei / per 8 bar		 Spannkraft /
Clamping force
bei / per 10 bar
161E (2-16) 152 77 170 97 5 kN 7 kN 9 kN
173E (3-42) 165 85 180 117 6 kN 8 kN 10 kN

Angaben ohne Gewähr, technische Änderungen vorbehalten /
Information provided without guarantee, technical changes reserved
