Six-jaw lathe chuck with fine adjustment Ø 160 mm

Preview: Six-jaw lathe chuck with fine adjustment Ø 160 mm Preview: Drawing Six-jaw lathe chuck with fine adjustment Ø 160 mm
Six-jaw lathe chuck with fine adjustment Ø 160 mm

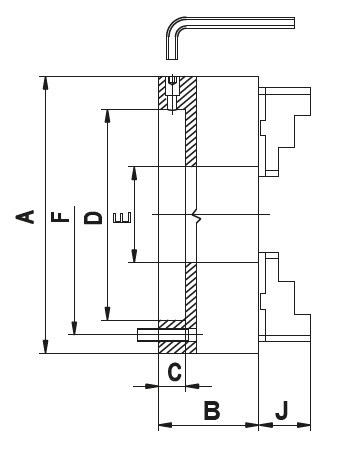

Drawing Six-jaw lathe chuck with fine adjustment Ø 160 mm

€669.74 *
€796.99 incl. VAT

Prices plus VAT plus shipping costs

Ready to ship today,
Delivery time appr. 1-3 workdays

  • Order number: ZE-8663-160
  • Customs tariff number: 8466 2091
  • European article number: 4049794042533
  • Weight: 10,8 kg
  • In stock: 3
Description Technical data Evaluations 0
Description
Six-jaw lathe chuck with fine adjustment Ø 160 mm, two-piece jaws - these lathe chucks... more
Close menu
Product information "Six-jaw lathe chuck with fine adjustment Ø 160 mm"

Six-jaw lathe chuck with fine adjustment Ø 160 mm, two-piece jaws

- these lathe chucks with radial fine adjustment are especially
  suitable for holding thin-sided tubes and soft materials
- suitable for admission from the front
- adjusting accuracy within 0,005 mm
- repeatibility 0,015 mm

- suitable for all types of lathes and different kinds of milling,
  drilling and CNC devices
- homogeneous clamping force by self-centering clamping jaws,
  high concentricity
- chuck body made from steel
- guide ways and wear surfaces ground
- scroll plate is drop forged of fine-alloy steel,
  and case hardened
- incl. 1 set each of hardened base jaws and reversible top jaws,
  wrench, fixing screws

Type: 6-jaw lathe chucks
Ø : 160 mm
Jaws: two-piece jaws
Material: Steel
Make: Zentra
Related links to "Six-jaw lathe chuck with fine adjustment Ø 160 mm"
Technical data
A (Ø) mm C mm D mm E mm F mm B mm H mm... more
Zurück
A (Ø)
mm		 C
mm		 D
mm		 E
mm		 F
mm		 B
mm		 H
mm		 RPM MAX
min -1
125 15 55 35,5 108 71,5 40 3000
160 18 86 42 140 68 43 2500
200 20 110 55 176 78 45 2200
250 20 145 76 224 89 53 1900
315 20 180 103 286 96,2 57 1500
400 22 299,2 136 171,5 123 67 1300
500 30 407,7 190 235 144 79 800
630 30 407,1 252 330,2 150 87 700

Inkl. je 1 Satz gehärteter Grund- und Umkehraufsatzbacken, Spannschlüssel, Befestigungsschrauben /
Incl. 1 set each of hardened base jaws and reversible top jaws, wrench, fixing screws

Angaben ohne Gewähr, technische Änderungen vorbehalten /
Information provided without guarantee, technical changes reserved
