Three-jaw lathe chuck 250 mm DIN 6350 drilled

Three-jaw lathe chuck 250 mm DIN 6350 drilled

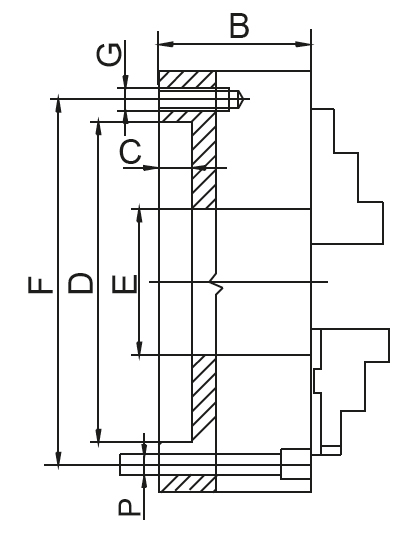

Drawing Three-jaw lathe chuck 250 mm DIN 6350 drilled

€389.23 *

€463.18 incl. VAT

Prices plus VAT plus shipping costs

Ready to ship today,
Delivery time appr. 1-3 workdays

Order number: ZE-6353-251
Customs tariff number: 8466 2091
European article number: 4049794682234
Weight: 28 kg
In stock: 9

Three-jaw lathe chuck Ø 250 mm, cast iron DIN 6350, one-piece jaws, drilled from front -... more

Close menu

Product information "Three-jaw lathe chuck 250 mm DIN 6350 drilled"

Three-jaw lathe chuck Ø 250 mm, cast iron DIN 6350,
one-piece jaws, drilled from front

- centre mount according to DIN 6350
- drilled on pitch circle "F", 3 x 120°
- chuck body made from cast iron
- one-piece jaws
- scroll plate is drop forged of fine-alloy steel,
and case hardened
- guide ways and wear surfaces ground
- suitable for all types of lathes and different kinds of
milling, drilling and CNC devices
- incl. 1 set each of solid jaws internally / externally stepped,
wrench, fixing screws

Type:	3-jaw lathe chucks
Ø :	250 mm
DIN:	6350
Jaws:	one-piece jaws
Material:	Cast iron
Make:	Zentra

Related links to "Three-jaw lathe chuck 250 mm DIN 6350 drilled"

A (Ø) mm B mm C mm D mm E mm F mm G mm P Für Schrauben / for scews H mm... more

Zurück

A (Ø) mm	B mm	C mm	D mm	E mm	F mm	G mm	P Für Schrauben / for scews	H mm	J mm	RPM MAX min -1	kg
125	56	4	95	32	108	3xM8	3xM8	51	20	3200	5
160	64	4	125	42	140	6xM10	3xM10	70	32	3000	10
200	75	4	160	55	176	6xM10	3xM10	85	29	2500	16,6
250	85	5	200	76	224	6xM12	3xM12	105	34	2000	29


Inkl. je 1 Satz Dreh- und Bohrbacken, Spannschlüssel, Befestigungsschrauben / Incl. 1 set each of solid jaws internally / externally stepped, wrench, fixing screws

Angaben ohne Gewähr, technische Änderungen vorbehalten / Information provided without guarantee, technical changes reserved
