Three-jaw lathe chuck DIN 6350 Ø 315 mm

Preview: 3-jaw lathe chuck DIN 6350 Ø 315 mm, cast iron Preview: Drawing 3-jaw lathe chuck DIN 6350 Ø 315 mm, cast iron
3-jaw lathe chuck DIN 6350 Ø 315 mm, cast iron

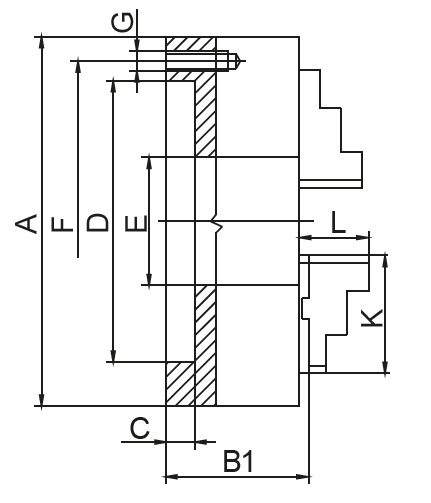

Drawing 3-jaw lathe chuck DIN 6350 Ø 315 mm, cast iron

€636.70 *
€757.67 incl. VAT

Prices plus VAT plus shipping costs

Ready to ship today,
Delivery time appr. 1-3 workdays

  • Order number: ZE-6363-315
  • Customs tariff number: 8466 2091
  • European article number: 4049794039113
  • Weight: 50 kg
  • In stock: 5
Description Technical data Evaluations 0
Description
Three-jaw lathe chuck DIN 6350 - centre mount, two-piece jaws - suitable for all types of... more
Close menu
Product information "Three-jaw lathe chuck DIN 6350 Ø 315 mm"

Three-jaw lathe chuck DIN 6350

- centre mount, two-piece jaws
- suitable for all types of lathes and different kinds of milling,
  drilling and CNC devices
- homogeneous clamping force by self-centering clamping jaws,
  high concentricity
- chuck body made from cast iron
- guide ways and wear surfaces ground
- scroll plate is drop forged of fine-alloy steel,
  and case hardened
- incl. 1 set each of hardened base jaws and reversible top jaws,
  wrench, fixing screws

Type: 3-jaw lathe chucks
Ø : 315 mm
DIN: 6350
Jaws: two-piece jaws
Material: Cast iron
Make: Zentra
Related links to "Three-jaw lathe chuck DIN 6350 Ø 315 mm"
Technical data
A (Ø) mm B1 mm C mm D mm E mm F mm G mm H mm J mm RPM  MAX min -1 kg 125... more
Zurück
A (Ø)
mm		B1
mm		C
mm		D
mm		E
mm		F
mm		G
mm		H
mm		J
mm		RPM MAX
min -1		kg
12560,8495321083xM8564032005
16069,34125421406xM106743300010
20079,84160551766xM108045250017,5
25088,85200762246xM129553200029
31599,152601032866xM1611057150050
400113,853301363626xM1612767100085
500130,854201904586xM1612779700145
630146,375452525866xM1612787500250
800170,320450320368,3–12787300402

Inkl. Je 1 Satz gehärteter Grund- und Umkehraufsatzbacken, Spannschlüssel, Befestigungsschrauben /
Incl. 1 set each of hardened base jaws and reversible top jaws, wrench, fixing screws

Angaben ohne Gewähr, technische Änderungen vorbehalten /
Information provided without guarantee, technical changes reserved
