€4,707.72 *
€5,602.19 incl. VAT
Prices plus VAT plus shipping costs
Ready to ship today,
Delivery time appr. 1-3 workdays
- Order number: ZE-6363-630
- Customs tariff number: 8466 2091
- European article number: 4049794039144
- Weight: 250 kg
- In stock: 1
Three-jaw lathe chuck DIN 6350
- centre mount, two-piece jaws - suitable for all types of... more

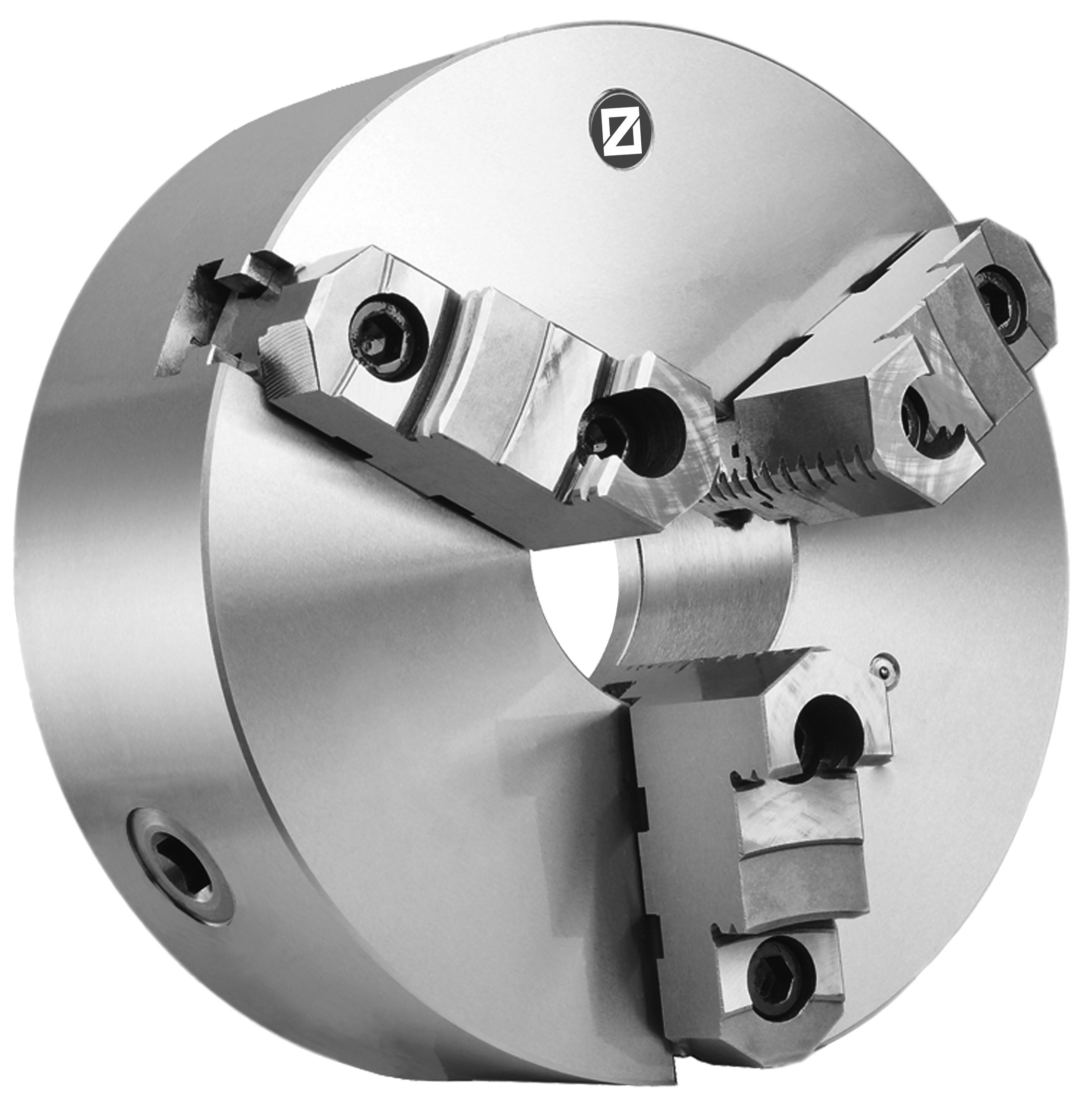

Product information "Three-jaw lathe chuck DIN 6350 Ø 630 mm"
Three-jaw lathe chuck DIN 6350
- centre mount, two-piece jaws
- suitable for all types of lathes and different kinds of milling,
drilling and CNC devices
- homogeneous clamping force by self-centering clamping jaws,
high concentricity
- chuck body made from cast iron
- guide ways and wear surfaces ground
- scroll plate is drop forged of fine-alloy steel,
and case hardened
- incl. 1 set each of hardened base jaws and reversible top jaws,
wrench, fixing screws
Type: | 3-jaw lathe chucks |
Ø : | 630 mm |
DIN: | 6350 |
Jaws: | two-piece jaws |
Material: | Cast iron |
Make: | Zentra |
Related links to "Three-jaw lathe chuck DIN 6350 Ø 630 mm"
A (Ø) mm B1 mm C mm D mm E mm F mm G mm H mm J mm RPM MAX min -1 kg 125... more

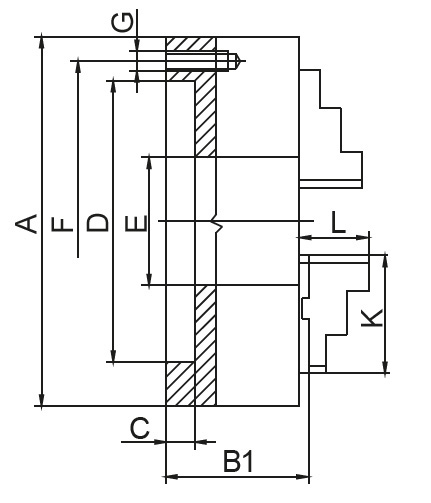

A (Ø) mm | B1 mm | C mm | D mm | E mm | F mm | G mm | H mm | J mm | RPM MAX min -1 | kg |
125 | 60,8 | 4 | 95 | 32 | 108 | 3xM8 | 56 | 40 | 3200 | 5 |
160 | 69,3 | 4 | 125 | 42 | 140 | 6xM10 | 67 | 43 | 3000 | 10 |
200 | 79,8 | 4 | 160 | 55 | 176 | 6xM10 | 80 | 45 | 2500 | 17,5 |
250 | 88,8 | 5 | 200 | 76 | 224 | 6xM12 | 95 | 53 | 2000 | 29 |
315 | 99,1 | 5 | 260 | 103 | 286 | 6xM16 | 110 | 57 | 1500 | 50 |
400 | 113,8 | 5 | 330 | 136 | 362 | 6xM16 | 127 | 67 | 1000 | 85 |
500 | 130,8 | 5 | 420 | 190 | 458 | 6xM16 | 127 | 79 | 700 | 145 |
630 | 146,3 | 7 | 545 | 252 | 586 | 6xM16 | 127 | 87 | 500 | 250 |
800 | 170,3 | 20 | 450 | 320 | 368,3 | – | 127 | 87 | 300 | 402 |
Inkl. Je 1 Satz gehärteter Grund- und Umkehraufsatzbacken, Spannschlüssel, Befestigungsschrauben / Incl. 1 set each of hardened base jaws and reversible top jaws, wrench, fixing screws | ||||||||||
Angaben ohne Gewähr, technische Änderungen vorbehalten / Information provided without guarantee, technical changes reserved |
