Three-jaw lathe chuck DIN 6350 Ø 250 mm

Preview: 3-jaw lathe chuck DIN 6350 Ø 250 mm, steel Preview: Drawing 3-jaw lathe chuck DIN 6350 Ø 250 mm, steel

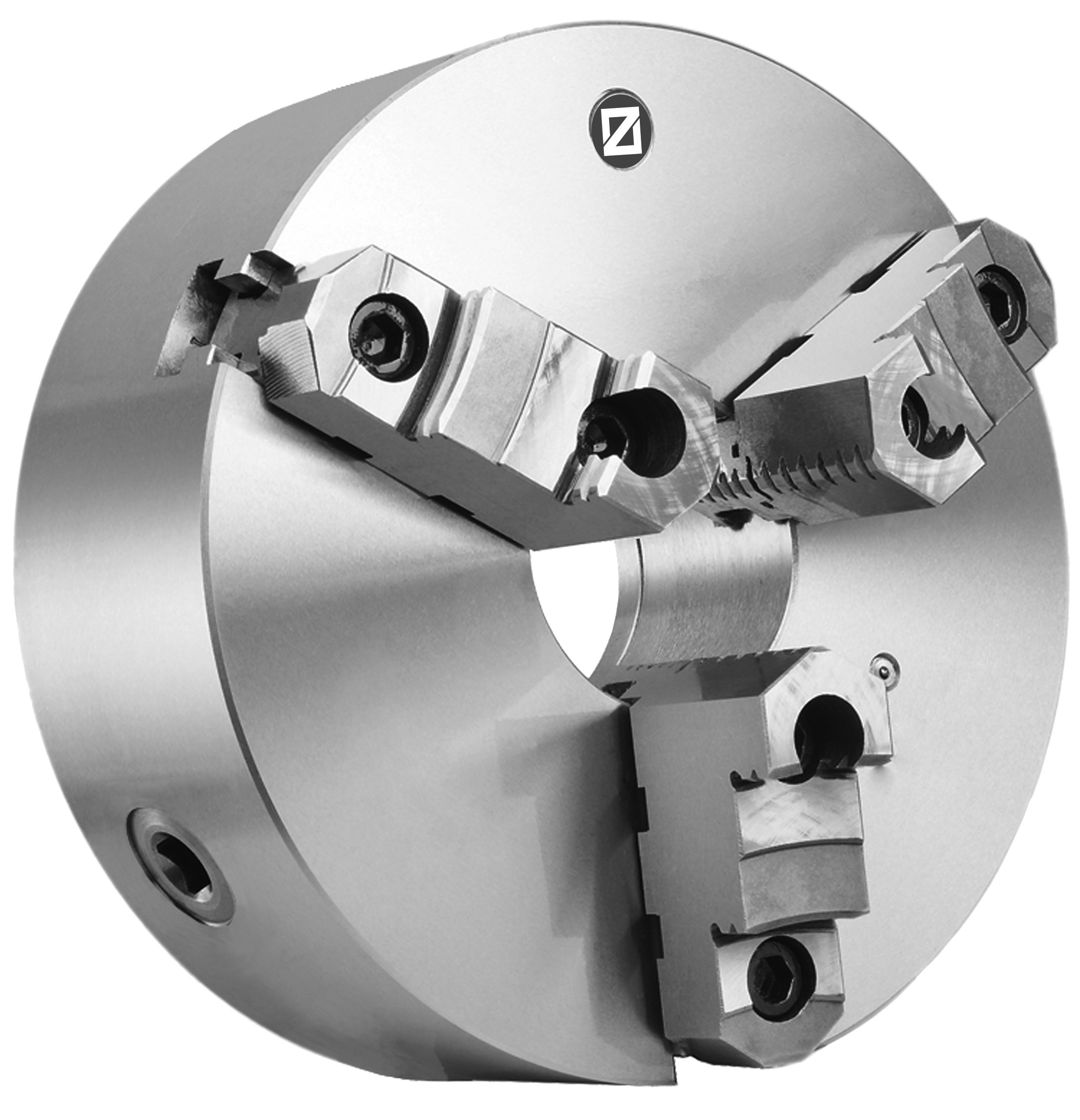

3-jaw lathe chuck DIN 6350 Ø 250 mm, steel

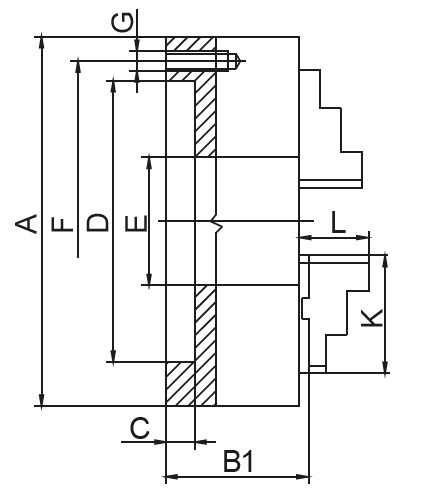

Drawing 3-jaw lathe chuck DIN 6350 Ø 250 mm, steel

€682.85 *
€812.59 incl. VAT

Prices plus VAT plus shipping costs

Ready to ship today,
Delivery time appr. 1-3 workdays

  • Order number: ZE-8363-250
  • Customs tariff number: 8466 2091
  • European article number: 4049794039274
  • Weight: 32 kg
  • In stock: 2
Description Technical data Evaluations 0
Description
Three-jaw lathe chuck DIN 6350 - centre mount, two-piece jaws - suitable for all types of... more
Close menu
Product information "Three-jaw lathe chuck DIN 6350 Ø 250 mm"

Three-jaw lathe chuck DIN 6350

- centre mount, two-piece jaws
- suitable for all types of lathes and different kinds of milling,
  drilling and CNC devices
- homogeneous clamping force by self-centering clamping jaws,
  high concentricity
- chuck body made from steel
- guide ways and wear surfaces ground
- scroll plate is drop forged of fine-alloy steel,
  and case hardened
- incl. 1 set each of hardened base jaws and reversible top jaws,
  wrench, fixing screws

Type: 3-jaw lathe chucks
Ø : 250 mm
DIN: 6350
Jaws: two-piece jaws
Material: Steel
Make: Zentra
Related links to "Three-jaw lathe chuck DIN 6350 Ø 250 mm"
Technical data
A (Ø) mm B1 mm C mm D mm E mm F mm G mm H mm J mm RPM  MAX min -1 kg 125... more
Zurück
A (Ø)
mm		B1
mm		C
mm		D
mm		E
mm		F
mm		G
mm		H
mm		J
mm		RPM MAX
min -1		kg
12566,349535,51083xM8564048005
16072,84125421406xM106743450010
20082,84160551766xM108045400017,5
25092,85200762246xM129553350029
315101,352601032866xM1611057280050
400116,853301363626xM1612767200085
500129,854201904586xM16127791200145
630140,375452525866xM16127871000250
800161,320450320368,3–12787450402

Inkl. Je 1 Satz gehärteter Grund- und Umkehraufsatzbacken, Spannschlüssel, Befestigungsschrauben /
Incl. 1 set each of hardened base jaws and reversible top jaws, wrench, fixing screws

Angaben ohne Gewähr, technische Änderungen vorbehalten /
Information provided without guarantee, technical changes reserved
Evaluations 0
Read, write and discuss reviews... more
Close menu
Customer evaluation for "Three-jaw lathe chuck DIN 6350 Ø 250 mm"
Write an evaluation
Evaluations will be activated after verification.
Please enter these characters in the following text field.

The fields marked with * are required.

Accessories 6 Customers also bought Customers also viewed
Accessories 6

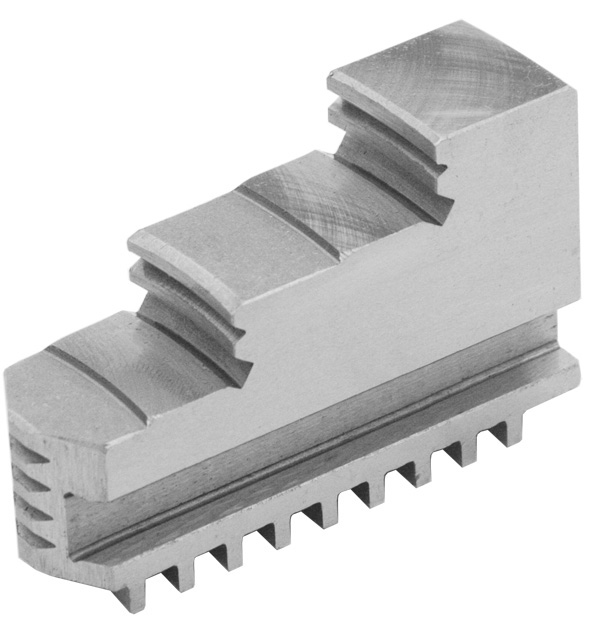

Solid jaws for three-jaw lathe chucks Ø 250 mm Solid jaws for three-jaw lathe chucks Ø 250 mm
€104.62 *
Stock: 9

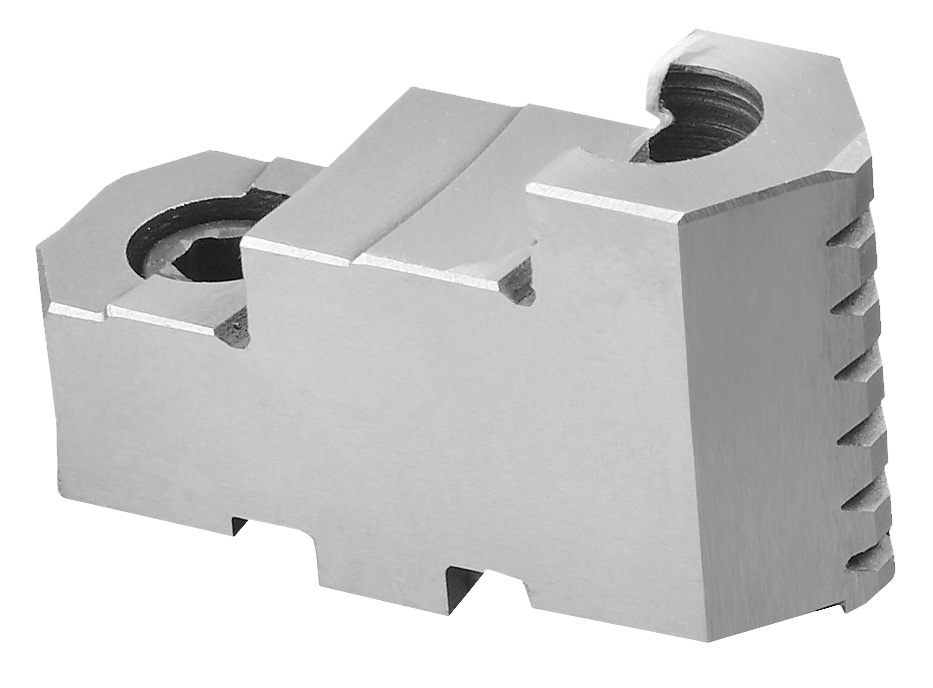

Hard top jaws, three-jaw lathe chucks Ø 250 Hard top jaws for three-jaw lathe chucks Ø 250 mm
€137.81 *

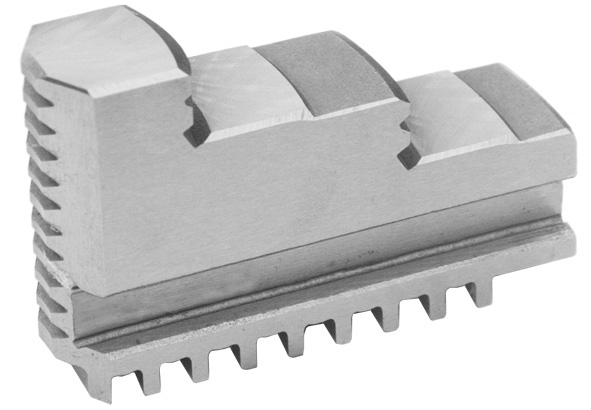

Solid jaws for three-jaw lathe chucks Ø 250 mm Solid jaws for three-jaw lathe chucks Ø 250 mm
€104.62 *
Stock: 15

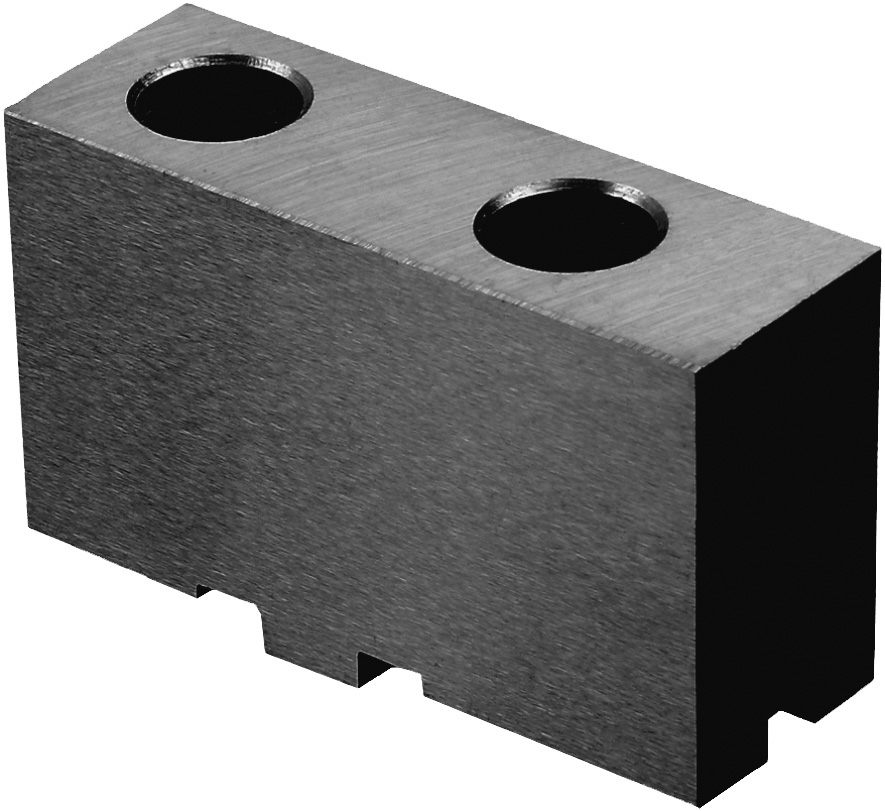

Soft top jaws, three-jaw lathe chucks Ø 250 Soft top jaws for three-jaw lathe chucks Ø 250 mm
€64.51 *
Stock: 104

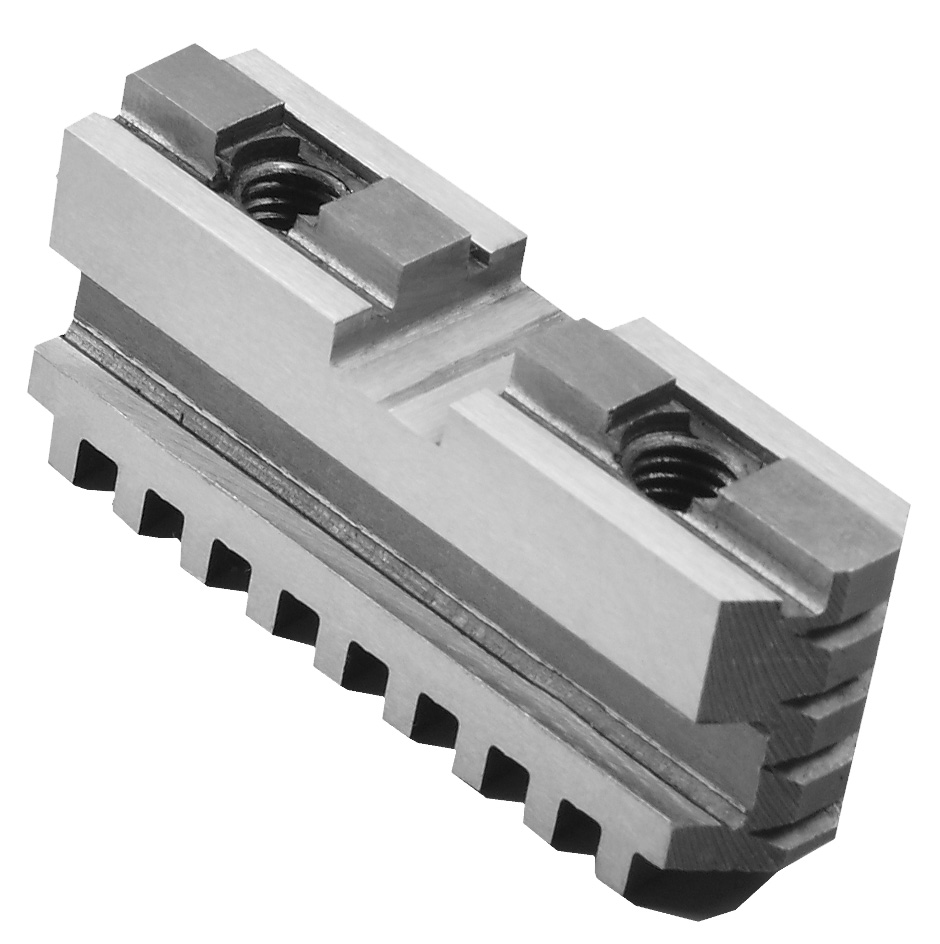

Base jaws for three-jaw lathe chucks Ø 250 Hard base jaws for three-jaw lathe chucks Ø 250 mm
€102.38 *
Stock: 60

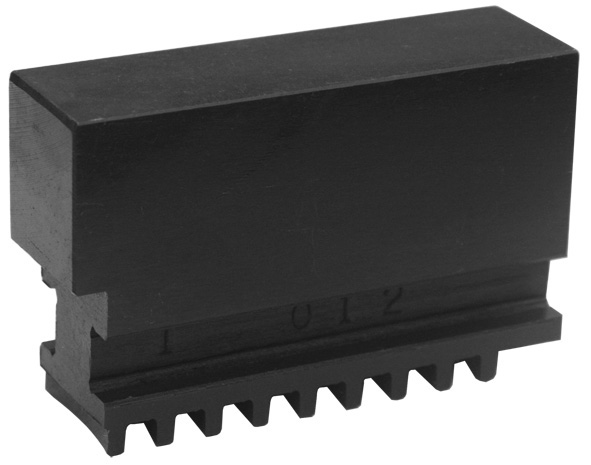

Soft solid jaws, three-jaw lathe chucks 250 mm Soft solid jaws for three-jaw lathe chucks 250 mm
