Two-jaw lathe chuck DIN 6350 Ø 160 mm

Preview: Two-jaw lathe chuck DIN 6350 Ø 160 mm Preview: Drawing Two-jaw lathe chuck DIN 6350 Ø 160 mm
Two-jaw lathe chuck DIN 6350 Ø 160 mm

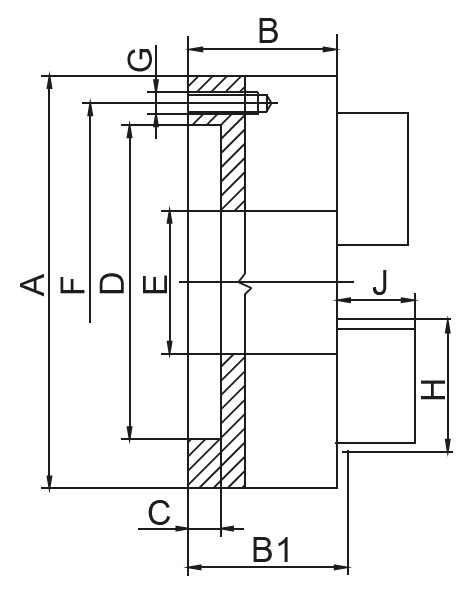

Drawing Two-jaw lathe chuck DIN 6350 Ø 160 mm

€224.71 *
€267.40 incl. VAT

Prices plus VAT plus shipping costs

Ready to ship today,
Delivery time appr. 1-3 workdays

  • Order number: ZE-6252-160
  • Customs tariff number: 8466 2091
  • European article number: 4049794038604
  • Weight: 9,6 kg
  • In stock: 2
Description Technical data Evaluations 0
Description
Two-jaw lathe chuck DIN 6350 - centre mount - suitable for all types of lathes and different... more
Close menu
Product information "Two-jaw lathe chuck DIN 6350 Ø 160 mm"

Two-jaw lathe chuck DIN 6350

- centre mount
- suitable for all types of lathes and different kinds of milling,
  drilling and CNC devices
- especially suitable for holding multicornered and form turned elements,
  which cannot be clamped by 3- or 4-jaw lathe chucks
- chuck body made from cast iron
- guide ways and wear surfaces ground
- scroll plate is drop forged of fine-alloy steel,
  and case hardened
- incl. 1 set base jaws and soft reversible top jaws,
  wrench, fixing screws

Type: 2-jaw lathe chucks
Ø : 160 mm
DIN: 6350
Jaws: two-piece jaws
Material: Cast iron
Make: Zentra
Related links to "Two-jaw lathe chuck DIN 6350 Ø 160 mm"
Technical data
A (Ø) mm B mm B1 mm C mm D mm E mm F mm G... more
Zurück
A (Ø)
mm		 B
mm		 B1
mm		 C
mm		 D
mm		 E
mm		 F
mm		 G
mm		 H
mm		 J
mm		 RPM MAX
min -1		 kg
160 64 69,3 4 125 42 140 6xM10 67 43 3000 10
200 75 79,3 4 160 55 176 6xM10 80 45 2500 17,5
250 85 88,8 5 200 76 224 6xM12 95 53 2000 29
315 94 99,1 5 260 103 286 6xM16 110 57 1500 50
400 105 113,8 5 330 136 362 6xM16 127 67 1000 85


Inkl. je 1 Satz Dreh- und Bohrbacken, Spannschlüssel, Befestigungsschrauben /
Incl. 1 set each of solid jaws internally / externally stepped, wrench, fixing screws

Angaben ohne Gewähr, technische Änderungen vorbehalten /
Information provided without guarantee, technical changes reserved
