Hard solid jaws for Bison Wescott Ø 630 mm

Preview: Hard solid jaws for Bison Wescott Ø 630 mm Preview: Drawing Hard solid jaws for Bison Wescott Ø 630 mm
Hard solid jaws for Bison Wescott Ø 630 mm

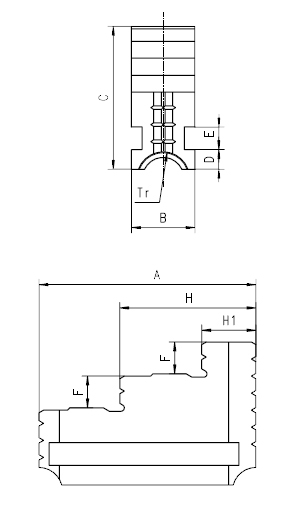

Drawing Hard solid jaws for Bison Wescott Ø 630 mm

€2,082.00 *
€2,477.58 incl. VAT

Prices plus VAT plus shipping costs

Delivery time upon request

  • Order number: 398575730000
  • Customs tariff number: 84662091
  • European article number:
  • Weight: 18 kg
  • In stock: 0
Description Technical data Evaluations 0
Description
Hard solid jaws, reversible clamping for Bison 4-jaw combination chucks (Wescott) Ø 630 mm... more
Close menu
Product information "Hard solid jaws for Bison Wescott Ø 630 mm"

Hard solid jaws, reversible clamping for Bison
4-jaw combination chucks (Wescott) Ø 630 mm

- material: steel
- 4 pieces/set

Make: Bison
Jaws: Hard solid jaws, reversible
Jaws for lathe chucks type: 4-jaw lathe chucks Wescott
Jaws for Ø: 630 mm
Related links to "Hard solid jaws for Bison Wescott Ø 630 mm"
Technical data

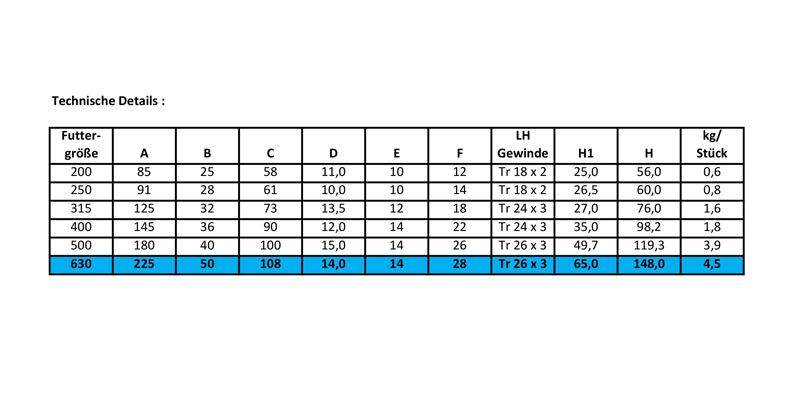

Futtergröße / Chuck size A B C D E F LH Gewinde / LH Thread H1 H kg... more
Zurück
Futtergröße /
Chuck size		 A B C D E F LH Gewinde /
LH Thread		 H1 H kg pro Stück /
kg per piece
200 85 25 58 11,0 10 12 Tr 18 x 2 25,0 56,0 0,6
250 91 28 61 10,0 10 14 Tr 18 x 2 26,5 60,0 0,8
315 125 32 73 13,5 12 18 Tr 24 x 3 27,0 76,0 1,6
400 145 36 90 12,0 14 22 Tr 24 x 3 35,0 98,2 1,8
500 180 40 100 15,0 14 26 Tr 26 x 3 49,7 119,3 3,9
630 225 50 108 14,0 14 28 Tr 26 x 3 65,0 148,0 4,5

Angaben ohne Gewähr, technische Änderungen vorbehalten /
Information provided without guarantee, technical changes reserved
