Hard solid jaws for scroll chuck-Ø 400 mm

€483.00 *

€574.77 incl. VAT

Delivery time upon request

Hard solid jaws, outside-inside clamping for Bison 4-jaw scroll chucks Ø 400 mm -... more

Product information "Hard solid jaws for scroll chuck-Ø 400 mm"

Hard solid jaws, outside-inside clamping
for Bison 4-jaw scroll chucks Ø 400 mm

- material: steel
- 4 pieces/set

Make:	Bison
Jaws:	Externally stepped solid jaws
Jaws for lathe chucks type:	4-jaw lathe chucks
Jaws for Ø:	400 mm

Related links to "Hard solid jaws for scroll chuck-Ø 400 mm"

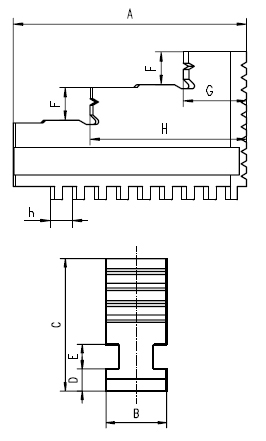

Futtergröße / Chuck size A B C D E F G H h kg pro Stück / kg per piece... more

Futtergröße / Chuck size	A	B	C	D	E	F	G	H	h	kg pro Stück / kg per piece
125	51	20	40	8,0	8	8	13,0	33,5	7,0	0,2
160	70	20	53	8,0	8	10	19,0	45,0	8,0	0,4
200	85	25	54	9,0	10	12	23,0	57,0	8,0	0,5
250	105	28	63	11,0	12	14	28,0	69,5	9,0	0,8
315	125	32	73	12,7	12	18	34,5	83,0	10,0	1,3
400	145	36	92	15,0	14	22	36,0	99,0	12,0	2,4
500	180	40	100	16,0	14	26	50,0	119,5	14,2	3,4
630 / 800	225	50	110	16,0	14	28	66,0	149,0	14,2	5,8

Angaben ohne Gewähr, technische Änderungen vorbehalten / Information provided without guarantee, technical changes reserved
