Hard top jaws for 4-jaw scroll chucks Ø 200 mm
€304.95*
% €321.00* (5% saved)
€362.89 incl. Vat.
Delivery time upon request
Product number:
398537840000
Customs tariff number
84662091
European Article Number
Weight
1,6 kg
Stock:
0
Related links:
Request Item
Product information "Hard top jaws for 4-jaw scroll chucks Ø 200 mm"

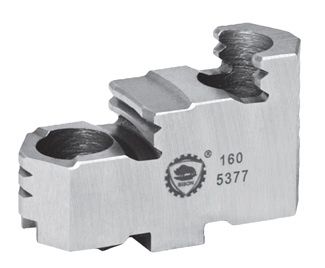

Hard top jaws
for Bison 4-jaw scroll chucks Ø 200 mm
- material: steel
- 4 pieces/set
| Jaws: | Hard top jaws |
|---|---|
| Jaws for lathe chucks type: | 4-jaw lathe chucks |
| Jaws for Ø: | 200 mm |
| Make: | Bison |

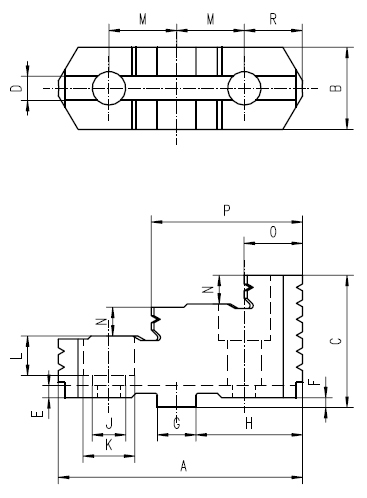

Technical Data
| Futtergröße / Chuck size |
A | B | C | D | E | F | G | H | J | K | L | M | N | O | P | R | kg pro Stück / kg per piece |
| 125 | 56 | 22,0 | 38,5 | 7,95 | 4 | 3,2 | 12,69 | 22,6 | 9 | 15 | 10,0 | 16,00 | 8,0 | 14,5 | 35,0 | 13,0 | 0,2 |
| 160 | 67 | 25,0 | 41,5 | 7,95 | 4 | 3,2 | 12,69 | 28,6 | 11 | 18 | 12,0 | 19,05 | 8,5 | 18,0 | 41,5 | 16,0 | 0,3 |
| 200 | 80 | 27,0 | 43,5 | 7,95 | 4 | 3,2 | 12,69 | 34,9 | 11 | 18 | 12,0 | 22,25 | 9,5 | 21,5 | 51,0 | 19,0 | 0,4 |
| 250 | 95 | 32,5 | 51,5 | 12,71 | 4 | 3,2 | 19,04 | 39,7 | 14 | 20 | 14,5 | 27,00 | 12,0 | 24,5 | 59,0 | 22,0 | 0,6 |
| 315 | 110 | 37,0 | 55,0 | 12,71 | 4 | 3,2 | 19,04 | 47,6 | 14 | 20 | 14,5 | 31,75 | 13,0 | 26,5 | 68,0 | 35,4 | 0,9 |
| 400 | 127 | 42,0 | 64,5 | 12,71 | 4 | 6,3 | 19,04 | 57,1 | 18 | 26 | 18,5 | 38,10 | 13,5 | 27,0 | 76,5 | 28,5 | 1,4 |
| 500 | 127 | 42,0 | 74,5 | 12,71 | 4 | 6,3 | 19,04 | 57,1 | 22 | 33 | 21,0 | 38,10 | 17,0 | 50,0 | 88,0 | 28,5 | 1,6 |
| 630 | 127 | 52,0 | 82,0 | 12,71 | 4 | 6,3 | 19,04 | 57,1 | 22 | 33 | 21,0 | 38,10 | 21,0 | 51,0 | 89,0 | 28,5 | 2,4 |
| Angaben ohne Gewähr, technische Änderungen vorbehalten / Information provided without guarantee, technical changes reserved |
|||||||||||||||||
Product Safety Information:
- Suitable only for technically skilled users familiar with the product and for craftsmen.
- Intended solely for the designated purpose.
- Improper use may lead to damage and injuries.
