- Order number: 398575310200
- Customs tariff number: 84662091
- European article number:
- Weight: 3,2 kg
- In stock: 0
Soft solid jaws for Bison 4-jaw combination chucks (Wescott) Ø 250 mm
- material: steel -... more
Product information "Soft solid jaws for Bison Wescott Ø 250 mm"
Soft solid jaws for Bison
4-jaw combination chucks (Wescott) Ø 250 mm
- material: steel
- 4 pieces/set
Make: | Bison |
Jaws: | Soft solid jaws |
Jaws for lathe chucks type: | 4-jaw lathe chucks Wescott |
Jaws for Ø: | 250 mm |
Related links to "Soft solid jaws for Bison Wescott Ø 250 mm"

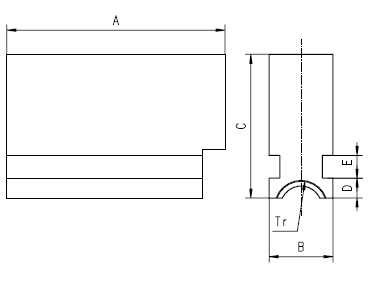

Futtergröße / Chuck size
A
B
C
D
E
G
LH Gewinde / LH Thread
H1
H
kg... more

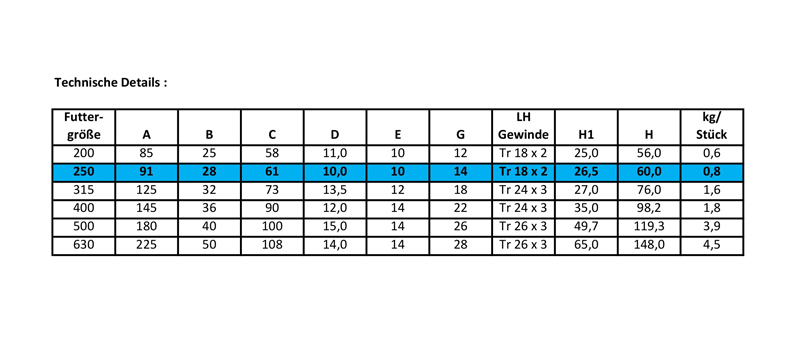

Futtergröße / Chuck size |
A | B | C | D | E | G | LH Gewinde / LH Thread |
H1 | H | kg pro Stück / kg per piece |
200 | 85 | 25 | 58 | 11,0 | 10 | 12 | Tr 18 x 2 | 25,0 | 56,0 | 0,6 |
250 | 91 | 28 | 61 | 10,0 | 10 | 14 | Tr 18 x 2 | 26,5 | 60,0 | 0,8 |
315 | 125 | 32 | 73 | 13,5 | 12 | 18 | Tr 24 x 3 | 27,0 | 76,0 | 1,6 |
400 | 145 | 36 | 90 | 12,0 | 14 | 22 | Tr 24 x 3 | 35,0 | 98,2 | 1,8 |
500 | 180 | 40 | 100 | 15,0 | 14 | 26 | Tr 26 x 3 | 49,7 | 119,3 | 3,9 |
630 | 225 | 50 | 108 | 14,0 | 14 | 28 | Tr 26 x 3 | 65,0 | 148,0 | 4,5 |
Angaben ohne Gewähr, technische Änderungen vorbehalten / Information provided without guarantee, technical changes reserved |
