Soft top jaws for 4-jaw scroll chucks Ø 160 mm

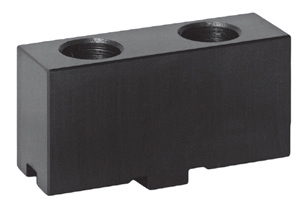

Preview: Soft top jaws for 4-jaw scroll chucks Ø 160 mm Preview: Drawing Soft top jaws for 4-jaw scroll chucks Ø 160 mm
Soft top jaws for 4-jaw scroll chucks Ø 160 mm

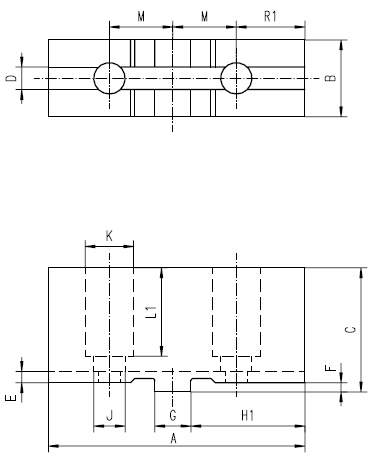

Drawing Soft top jaws for 4-jaw scroll chucks Ø 160 mm

€111.75 *
€132.98 incl. VAT

Prices plus VAT plus shipping costs

Delivery time upon request

  • Order number: 398538230000
  • Customs tariff number: 84662091
  • European article number:
  • Weight: 2 kg
  • In stock: 0
Description Technical data Evaluations 0
Description
Soft top jaws for Bison 4-jaw scroll chucks Ø 160 mm - material: steel - 4 pieces/set more
Close menu
Product information "Soft top jaws for 4-jaw scroll chucks Ø 160 mm"

Soft top jaws
for Bison 4-jaw scroll chucks Ø 160 mm

- material: steel
- 4 pieces/set

Make: Bison
Jaws: Soft top jaws
Jaws for lathe chucks type: 4-jaw lathe chucks
Jaws for Ø: 160 mm
Related links to "Soft top jaws for 4-jaw scroll chucks Ø 160 mm"
Technical data
Futtergröße / Chuck size A B C D E F G H1 J K L1 M kg pro Stück... more
Zurück
Futtergröße /
Chuck size		 A B C D E F G H1 J K L1 M kg pro Stück /
kg per piece
125 64 22,0 46,5 7,95 4 3,2 12,69 25 9 15 26,0 16,00 0,3
160 78 25,0 41,5 7,95 4 3,2 12,69 34 11 18 29,0 19,05 0,5
200 90 27,0 43,5 7,95 4 3,2 12,69 40 11 18 31,0 22,25 0,7
250 106 32,5 51,5 12,71 4 3,2 19,04 45 14 20 38,0 27,00 1,2
315 120 37,0 55,0 12,71 4 3,2 19,04 53 14 20 40,0 31,75 1,6
400 140 42,0 64,5 12,71 4 6,3 19,04 63 18 26 45,5 38,10 2,2
500 140 42,0 74,5 12,71 4 6,3 19,04 63 22 33 56,0 38,10 2,4
630 / 800 160 52,0 82,0 12,71 4 6,3 19,04 63 22 33 64,0 38,10 4,2

Angaben ohne Gewähr, technische Änderungen vorbehalten /
Information provided without guarantee, technical changes reserved
