Hard top jaws for 6-jaw scroll chucks Ø 400 mm

Preview: Hard top jaws for 6-jaw scroll chucks Ø 400 mm Preview: Drawing Hard top jaws for 6-jaw scroll chucks Ø 400 mm
Hard top jaws for 6-jaw scroll chucks Ø 400 mm

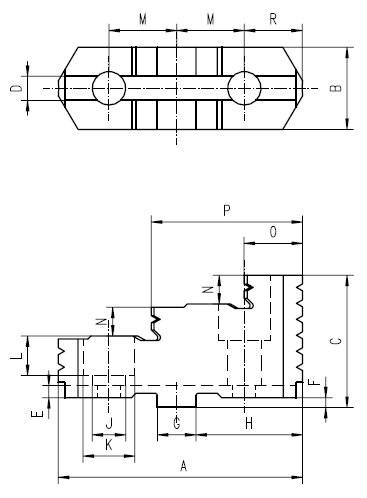

Drawing Hard top jaws for 6-jaw scroll chucks Ø 400 mm

€853.50 *
€1,015.67 incl. VAT

Prices plus VAT plus shipping costs

Delivery time upon request

  • Order number: 398540870500
  • Customs tariff number: 84662091
  • European article number:
  • Weight: 8,4 kg
  • In stock: 0
Description Technical data Evaluations 0
Description
Hard top jaws for Bison 6-jaw scroll chucks Ø 400 mm - material: steel - 6 pieces/set more
Close menu
Product information "Hard top jaws for 6-jaw scroll chucks Ø 400 mm"

Hard top jaws
for Bison 6-jaw scroll chucks Ø 400 mm

- material: steel
- 6 pieces/set

Make: Bison
Jaws: Hard top jaws
Jaws for lathe chucks type: 6-jaw lathe chucks
Jaws for Ø: 400 mm
Related links to "Hard top jaws for 6-jaw scroll chucks Ø 400 mm"
Technical data
Futtergröße / Chuck size A B C D E F G H J K L M N O P R... more
Zurück
Futtergröße /
Chuck size		 A B C D E F G H J K L M N O P R kg pro Stück /
kg per piece
200 80 27,0 43,5 7,95 4 3,2 12,69 34,9 11 18 12,0 22,25 9,5 21,5 51,0 19,0 0,4
250 95 32,5 51,5 12,71 4 3,2 19,04 39,7 14 20 14,5 27,00 12,0 24,5 59,0 22,0 0,6
315 110 37,0 55,0 12,71 4 3,2 19,04 47,6 14 20 14,5 31,75 13,0 26,5 68,0 35,4 0,9
400 127 42,0 64,5 12,71 4 6,3 19,04 57,1 18 26 18,5 38,10 13,5 27,0 76,5 28,5 1,4
500 127 42,0 74,5 12,71 4 6,3 19,04 57,1 22 33 21,0 38,10 17,0 50,0 88,0 28,5 1,6
630 127 52,0 82,0 12,71 4 6,3 19,04 57,1 22 33 21,0 38,10 21,0 51,0 89,0 28,5 2,4

Angaben ohne Gewähr, technische Änderungen vorbehalten /
Information provided without guarantee, technical changes reserved
