Hard solid jaws, outside clamping for Ø 80 mm

€93.00 *
€110.67 incl. VAT

Prices plus VAT plus shipping costs

Delivery time upon request

  • 398535100000
  • 84662091
  • 0,09 kg
  • -1
Hard solid jaws, outside clamping for Bison 3-jaw scroll chucks Ø 80 mm - material:... more
Product information "Hard solid jaws, outside clamping for Ø 80 mm"

Hard solid jaws, outside clamping
for Bison 3-jaw scroll chucks Ø 80 mm

- material: steel
- 3 pieces/set

Make: Bison
Jaws: Internally stepped solid jaws
Jaws for lathe chucks type: 3-jaw lathe chucks
Jaws for Ø: 80 mm
Related links to "Hard solid jaws, outside clamping for Ø 80 mm"

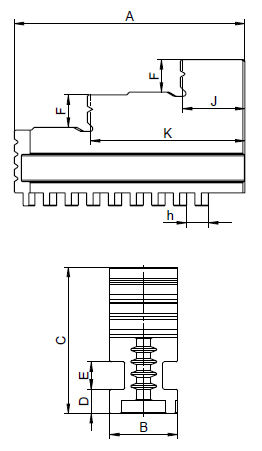

Futtergröße / Chuck size A B C D E F J K... more
Futtergröße /
Chuck size
A B C D E F J K h kg pro Stück /
kg per piece
80 32 11 28 6,0 6 6 9,5 21,0 4,0 0,03
100 42 15 31 6,0 6 7 11,0 27,0 6,0 0,1
125 51 20 40 8,0 8 8 13,0 33,5 7,0 0,2
160 70 20 53 8,0 8 10 19,0 45,0 8,0 0,4
200 85 25 54 9,0 10 12 23,0 57,0 8,0 0,5
250 105 28 63 11,0 12 14 28,0 69,5 9,0 0,8
315 125 32 73 12,7 12 18 34,5 83,0 10,0 1,3
400 145 36 92 15,0 14 22 36,0 99,0 12,0 2,4
500 180 40 100 16,0 14 26 50,0 119,5 14,2 3,4
630 / 800 225 50 110 16,0 14 28 66,0 149,0 14,2 5,8

Angaben ohne Gewähr, technische Änderungen vorbehalten /
Information provided without guarantee, technical changes reserved
