Hard solid jaws for chuck-Ø 630 / 800 mm

Preview: Hard solid jaws for chuck-Ø 630 / 800 mm Preview: Drawing Hard solid jaws for chuck-Ø 630 / 800 mm
Hard solid jaws for chuck-Ø 630 / 800 mm

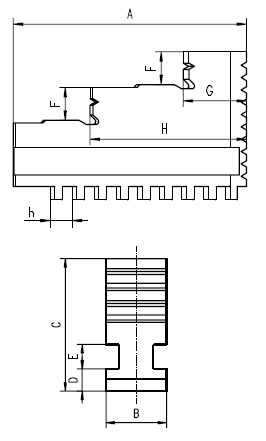

Drawing Hard solid jaws for chuck-Ø 630 / 800 mm

€1,053.00 *
€1,253.07 incl. VAT

Prices plus VAT plus shipping costs

Delivery time upon request

  • Order number: 398535090500
  • Customs tariff number: 84662091
  • European article number:
  • Weight: 17,4 kg
  • In stock: 0
Description Technical data Evaluations 0
Description
Hard solid jaws, outside-inside clamping for Bison 3-jaw scroll chucks Ø 630 / 800 mm... more
Close menu
Product information "Hard solid jaws for chuck-Ø 630 / 800 mm"

Hard solid jaws, outside-inside clamping
for Bison 3-jaw scroll chucks Ø 630 / 800 mm

- material: steel
- 3 pieces/set

Make: Bison
Jaws: Externally stepped solid jaws
Jaws for lathe chucks type: 3-jaw lathe chucks
Jaws for Ø: 630 mm, 800 mm
Related links to "Hard solid jaws for chuck-Ø 630 / 800 mm"
Technical data
Futtergröße / Chuck size A B C D E F G H h kg pro Stück / kg per piece... more
Zurück
Futtergröße /
Chuck size		 A B C D E F G H h kg pro Stück /
kg per piece
80 32 11 28 6,0 6 6 9,5 21,0 4,0 0,03
100 42 15 31 6,0 6 7 11,0 27,0 6,0 0,1
125 51 20 40 8,0 8 8 13,0 33,5 7,0 0,2
160 70 20 53 8,0 8 10 19,0 45,0 8,0 0,4
200 85 25 54 9,0 10 12 23,0 57,0 8,0 0,5
250 105 28 63 11,0 12 14 28,0 69,5 9,0 0,8
315 125 32 73 12,7 12 18 34,5 83,0 10,0 1,3
400 145 36 92 15,0 14 22 36,0 99,0 12,0 2,4
500 180 40 100 16,0 14 26 50,0 119,5 14,2 3,4
630 / 800 225 50 110 16,0 14 28 66,0 149,0 14,2 5,8

Angaben ohne Gewähr, technische Änderungen vorbehalten /
Information provided without guarantee, technical changes reserved
