- Order number: 398536010900
- Customs tariff number: 84662091
- European article number:
- Weight: 0,3 kg
- In stock: 0
Soft solid jaws for Bison 3-jaw scroll chucks Ø 100 mm
- material: steel - 3 pieces/set more
Product information "Soft solid jaws for 3-jaw scroll chucks Ø 100 mm"
Soft solid jaws
for Bison 3-jaw scroll chucks Ø 100 mm
- material: steel
- 3 pieces/set
Make: | Bison |
Jaws: | Soft solid jaws |
Jaws for lathe chucks type: | 3-jaw lathe chucks |
Jaws for Ø: | 100 mm |
Related links to "Soft solid jaws for 3-jaw scroll chucks Ø 100 mm"

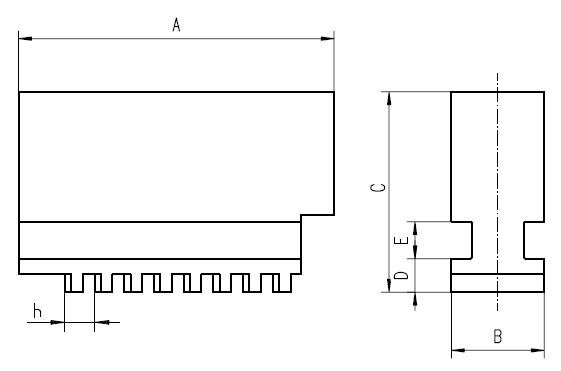

Futtergröße / Chuck size
A
B
C
D
E
h
kg pro Stück / kg per... more
Futtergröße / Chuck size |
A | B | C | D | E | h | kg pro Stück / kg per piece |
80 | 32 | 11 | 28 | 6,0 | 6 | 4,0 | 0,1 |
100 | 42 | 15 | 31 | 6,0 | 6 | 6,0 | 0,1 |
125 | 51 | 20 | 40 | 8,0 | 8 | 7,0 | 0,3 |
160 | 70 | 20 | 53 | 8,0 | 8 | 8,0 | 0,5 |
200 | 85 | 25 | 54 | 9,0 | 10 | 8,0 | 0,8 |
250 | 105 | 28 | 63 | 11,0 | 12 | 9,0 | 1,4 |
315 | 125 | 32 | 73 | 12,7 | 12 | 10,0 | 1,9 |
400 | 145 | 36 | 92 | 15,0 | 14 | 12,0 | 2,5 |
500 | 180 | 40 | 100 | 16,0 | 14 | 14,2 | 5,0 |
630 | 225 | 50 | 110 | 16,0 | 14 | 14,2 | 8,4 |
Angaben ohne Gewähr, technische Änderungen vorbehalten / Information provided without guarantee, technical changes reserved |
