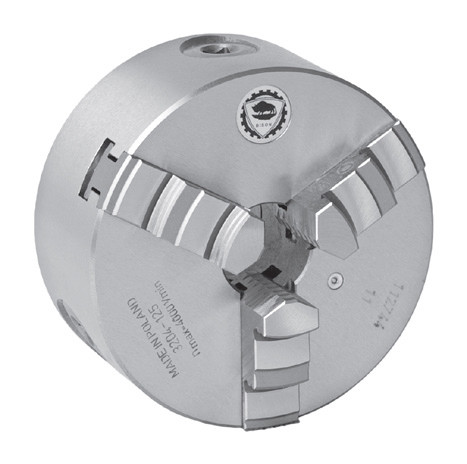

3-jaw scroll chuck Bison type 3204-400
Product information "3-jaw scroll chuck Bison type 3204-400"
3-jaw scroll chuck Bison
- plain back mounting DIN 6350
- type 3204 Ø 400 mm
- ground working surfaces
- material of body: cast iron
- solid jaws
- incl. 1 set of hard outside-inside solid jaws, 1 set of hard outside solid jaws
and 1 wrench
| DIN: | 6350 |
|---|---|
| Jaws: | one-piece jaws |
| Make: | Bison |
| Material: | Cast iron |
| Type: | 3-jaw lathe chucks |
| Ø : | 400 mm |
Technical Data

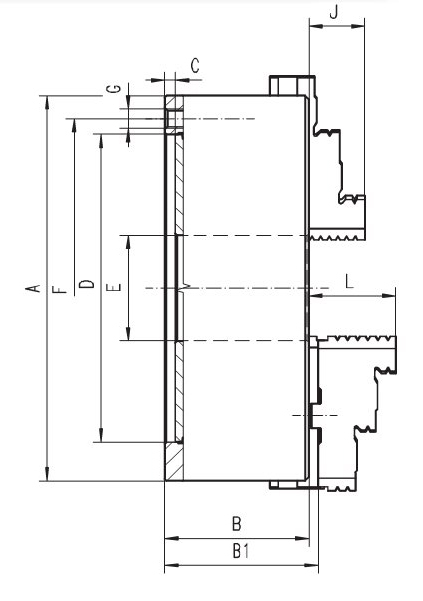

| A | B | B1 | C | D H7 | E | F | G | J | L | kg |
| 80 | 44,0 | - | 3 | 56 | 16 | 67 | 3xM6 | 13 | - | 1,5 |
| 100 | 50,0 | - | 3 | 70 | 20 | 83 | 3xM8 | 16 | - | 2,8 |
| 125 | 56,0 | 60,8 | 4 | 95 | 32 | 108 | 3xM8 | 20 | 40 | 5,0 |
| 160 | 64,5 | 69,3 | 4 | 125 | 42 | 140 | 6xM10 | 32 | 43 | 10,0 |
| 200 | 75,0 | 79,8 | 4 | 160 | 55 | 176 | 6xM10 | 29 | 45 | 17,5 |
| 250 | 85,0 | 88,8 | 5 | 200 | 76 | 224 | 6xM12 | 34 | 53 | 29,0 |
| 315 | 94,0 | 99,1 | 5 | 260 | 103 | 286 | 6xM16 | 43 | 57 | 50,0 |
| 400 | 105,0 | 113,8 | 5 | 330 | 136 | 362 | 6xM16 | 55 | 67 | 85,0 |
| 500 | 120,0 | 130,8 | 5 | 420 | 190 | 458 | 6xM16 | 60 | 79 | 145,0 |
| 630 | 135,0 | 146,3 | 7 | 545 | 252 | 586 | 6xM16 | 70 | 87 | 250,0 |
| Inkl. 1 Satz harter einteiliger Bohrbacken, 1 Satz harter einteiliger Drehbacken und 1 Schlüssel / Incl. 1 set of hard outside-inside solid jaws, 1 set of hard outside solid jaws and 1 wrench | ||||||||||
| Angaben ohne Gewähr, technische Änderungen vorbehalten / Information provided without guarantee, technical changes reserved | ||||||||||
