3-jaw scroll chuck Bison type 3504-400
Product information "3-jaw scroll chuck Bison type 3504-400"
3-jaw scroll chuck Bison
- plain back mounting DIN 6350
- type 3504 Ø 400 mm
- hardened and ground working surfaces
- balanced scroll plate
- material of body: steel
- solid jaws
- incl. 1 set of hard outside-inside solid jaws, 1 set of hard outside solid jaws
and 1 wrench
| DIN: | 6350 |
|---|---|
| Jaws: | one-piece jaws |
| Make: | Bison |
| Material: | Steel |
| Type: | 3-jaw lathe chucks |
| Ø : | 400 mm |

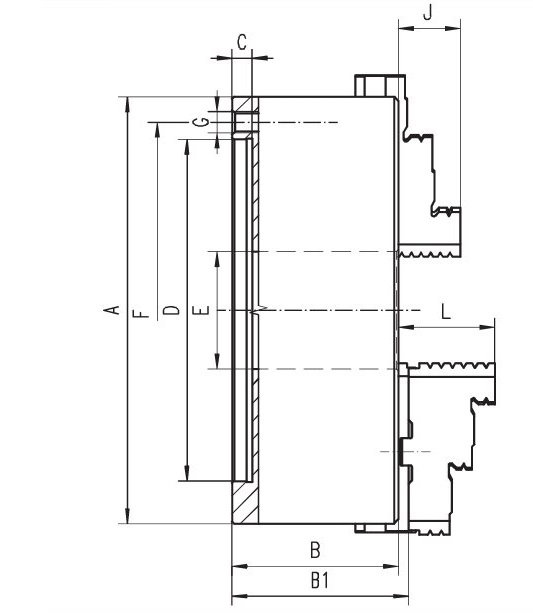

Technical Data
| A | B | B1 | C | D H7 | E | F | G | J | L | kg |
| 80 | 44,0 | - | 3 | 56 | 16,0 | 67,0 | 3xM6 | 13 | - | 1,5 |
| 100 | 50,0 | - | 3 | 70 | 20,0 | 83,0 | 3xM8 | 16 | - | 2,8 |
| 125 | 59,5 | 64,3 | 4 | 95 | 35,5 | 108,0 | 3xM8 | 20 | 40,0 | 5,0 |
| 160 | 68,0 | 72,8 | 4 | 125 | 42,0 | 140,0 | 6xM10 | 32 | 43,0 | 10,0 |
| 200 | 78,0 | 82,8 | 4 | 160 | 55,0 | 176,0 | 6xM10 | 29 | 45,0 | 17,5 |
| 250 | 89,0 | 92,8 | 5 | 200 | 76,0 | 224,0 | 6xM12 | 34 | 53,0 | 29,0 |
| 315 | 96,2 | 101,3 | 5 | 260 | 103,0 | 286,0 | 6xM16 | 43 | 57,0 | 50,0 |
| 400 | 109,0 | 116,8 | 5 | 330 | 136,0 | 362,0 | 6xM16 | 55 | 67,0 | 85,0 |
| 500 | 119,0 | 129,8 | 5 | 420 | 190,0 | 458,0 | 6xM16 | 60 | 79,0 | 145,0 |
| 630 | 129,0 | 140,3 | 7 | 545 | 252,0 | 586,0 | 6xM16 | 70 | 87,0 | 250,0 |
| Inkl. 1 Satz harter einteiliger Bohrbacken, 1 Satz harter einteiliger Drehbacken und 1 Schlüssel / Incl. 1 set of hard outside-inside solid jaws, 1 set of hard outside solid jaws and 1 wrench | ||||||||||
| Angaben ohne Gewähr, technische Änderungen vorbehalten / Information provided without guarantee, technical changes reserved | ||||||||||
Product Safety Information:
- Suitable only for technically skilled users familiar with the product and for craftsmen.
- Intended solely for the designated purpose.
- Improper use may lead to damage and injuries.
Importer/Manufacturer:
Gedema GmbH
Berchumer Str. 74
58093 Hagen
Email: info@messwelt.com
Email: info@gedema.com
Items explicitly stating the manufacturer are excluded.
