Hard master jaws for 2-jaw scroll chucks Ø 315 mm

Preview: Hard master jaws for 2-jaw scroll chucks Ø 315 mm Preview: Drawing 1 Hard master jaws for 2-jaw scroll chucks Ø 315 mm Preview: Drawing 2 Hard master jaws for 2-jaw scroll chucks Ø 315 mm
Hard master jaws for 2-jaw scroll chucks Ø 315 mm

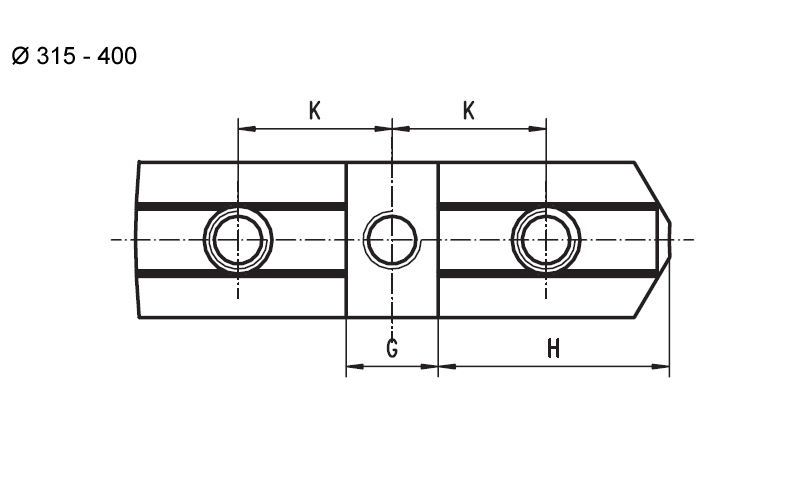

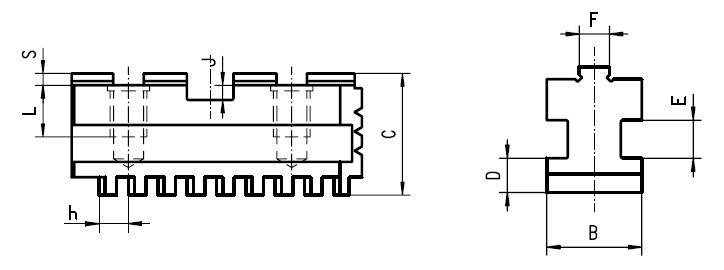

Drawing 1 Hard master jaws for 2-jaw scroll chucks Ø 315 mm

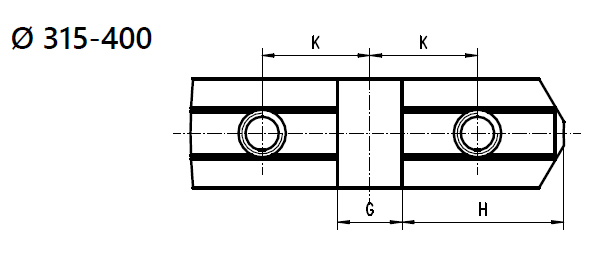

Drawing 2 Hard master jaws for 2-jaw scroll chucks Ø 315 mm

€242.25 *
€288.28 incl. VAT

Prices plus VAT plus shipping costs

Delivery time upon request

  • Order number: 398530740100
  • Customs tariff number: 84662091
  • European article number:
  • Weight: 1,6 kg
  • In stock: 0
Description Technical data Evaluations 0
Description
Hard master jaws for Bison 2-jaw scroll chucks Ø 315 mm - material: steel - 2... more
Close menu
Product information "Hard master jaws for 2-jaw scroll chucks Ø 315 mm"

Hard master jaws for
Bison 2-jaw scroll chucks Ø 315 mm

- material: steel
- 2 pieces/set

Make: Bison
Jaws: Hard base jaws
Jaws for lathe chucks type: 2-jaw lathe chucks
Jaws for Ø: 315 mm
Related links to "Hard master jaws for 2-jaw scroll chucks Ø 315 mm"
Technical data

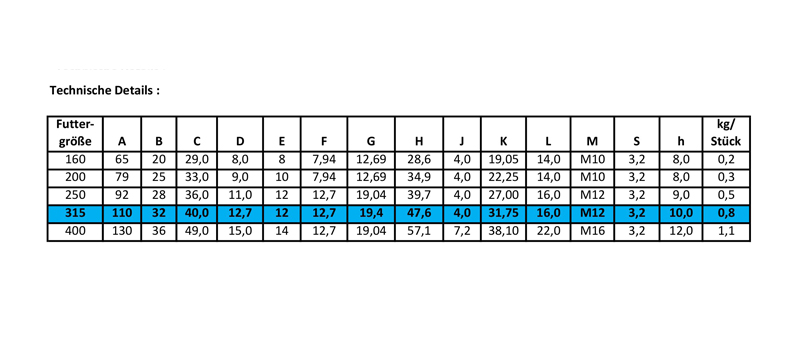

Futtergröße / Chuck size A B C D E F G H J K L M* S h kg pro... more
Zurück
Futtergröße /
Chuck size		 A B C D E F G H J K L M* S h kg pro Stück /
kg per piece
160 65 20 29 8,0 8 7,94 12,69 28,6 4,0 19,05 14 M10 3,2 8 0,2
200 79 25 33 9,0 10 7,94 12,69 34,9 4,0 22,25 14 M10 3,2 8 0,3
250 92 28 36 11,0 12 12,70 19,04 39,7 4,0 27,00 16 M12 3,2 9 0,5
315 110 32 40 12,7 12 12,70 19,04 47,6 4,0 31,75 16 M12 3,2 10 0,8
400 130 36 49 15,0 14 12,70 19,04 57,1 7,2 38,10 22 M16 3,2 12 1,1

* Schrauben sind im Lieferumfang enthalten / Screws are included in delivery

Angaben ohne Gewähr, technische Änderungen vorbehalten /
Information provided without guarantee, technical changes reserved
