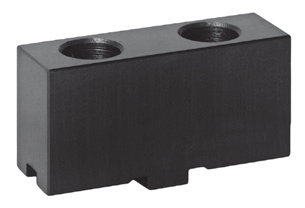

Soft top jaws for 2-jaw scroll chucks Ø 400 mm

Preview: Soft top jaws for 2-jaw scroll chucks Ø 400 mm Preview: Drawing Soft top jaws for 2-jaw scroll chucks Ø 400 mm
Soft top jaws for 2-jaw scroll chucks Ø 400 mm

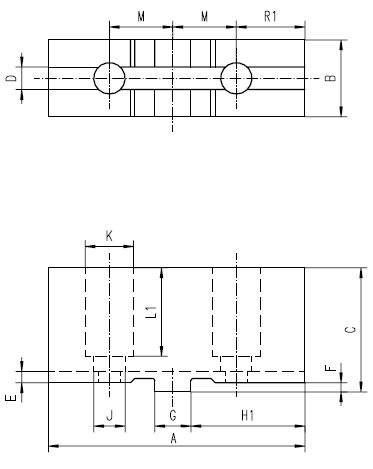

Drawing Soft top jaws for 2-jaw scroll chucks Ø 400 mm

€167.25 *
€199.03 incl. VAT

Prices plus VAT plus shipping costs

Delivery time upon request

  • Order number: 398530570500
  • Customs tariff number: 84662091
  • European article number:
  • Weight: 4,4 kg
  • In stock: 0
Description Technical data Evaluations 0
Description
Soft top jaws for Bison 2-jaw scroll chucks Ø 400 mm - material: steel - 2 pieces/set more
Close menu
Product information "Soft top jaws for 2-jaw scroll chucks Ø 400 mm"

Soft top jaws for
Bison 2-jaw scroll chucks Ø 400 mm

- material: steel
- 2 pieces/set

Make: Bison
Jaws: Soft top jaws
Jaws for lathe chucks type: 2-jaw lathe chucks
Jaws for Ø: 400 mm
Related links to "Soft top jaws for 2-jaw scroll chucks Ø 400 mm"
Technical data
Futtergröße / Chuck size A B C D E F G H1 J K L1 M kg pro Stück... more
Zurück
Futtergröße /
Chuck size		 A B C D E F G H1 J K L1 M kg pro Stück /
kg per piece
160 78 40 41,5 7,95 4 3,2 12,69 34 11 18 29,0 19,05 0,5
200 90 40 41,5 7,95 4 3,2 12,69 40 11 14 31,0 22,25 0,7
250 106 47 51,5 12,71 4 3,2 19,04 45 14 20 38,0 27,00 1,2
315 120 52 55,0 12,71 4 3,2 19,04 53 14 20 40,0 31,75 1,6
400 140 52 64,5 12,71 4 6,3 19,04 63 18 26 45,5 38,10 2,2

Angaben ohne Gewähr, technische Änderungen vorbehalten /
Information provided without guarantee, technical changes reserved
