Precision machine vice type CMC 100 / 100
€420.84*
Available, delivery time: 1-3 workdays
Product information "Precision machine vice type CMC 100 / 100"
Precision machine vice CMC 100 / 100
- hardened slideways
- with pull-down mechanism
- modular system
- parallelism < 0,005 / 100 mm
- perpendicularity < 0,02 / 50 mm
- repeatability < 0,02 mm
- fixed jaw rotatable by 180°, reverse with step

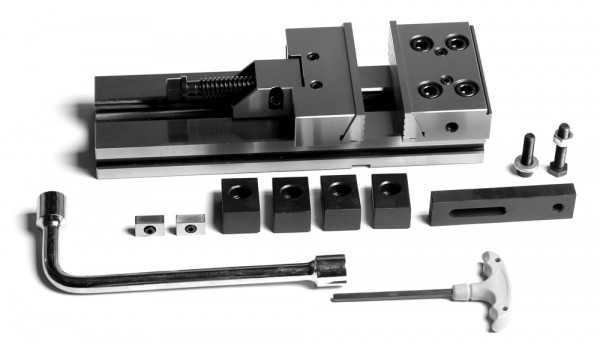

- incl. brackets, T-nuts, wrench, crank and work piece
| Clamping capacity: | 100 mm |
|---|---|
| Jaw width: | 100 mm |
| Make: | Zentra |
| Type: | mechanically |
| Type: | Machine vices |

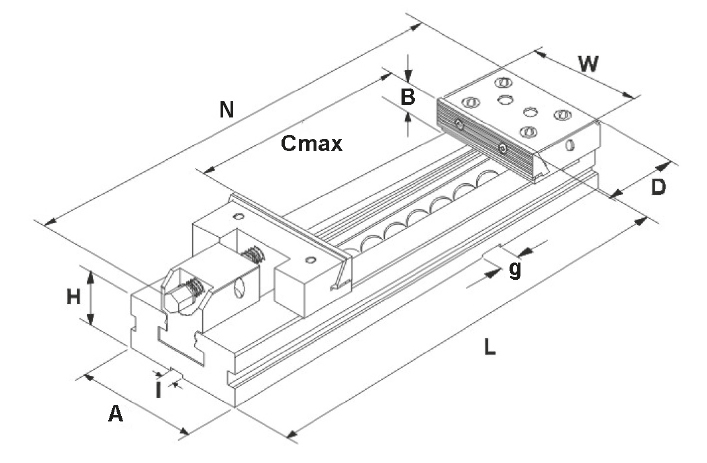

Technical Data
| W mm |
Cmax mm |
L mm |
N mm |
A mm |
D mm |
H mm |
g mm |
B mm |
Max. Anz.moment / Max. torque Nm |
Max. Spannkraft / Clamping force daN |
kg |
| 100 | 100 | 270 | 320 | 75 | 77,9 | 35 | 16 | 30 | 30 | 3000 | 7 |
| 125 | 150 | 345 | 410 | 95 | 77,9 | 40 | 16 | 40 | 40 | 3000 | 13 |
| 150 | 200 | 420 | 500 | 125 | 89,4 | 50 | 16 | 50 | 60 | 5000 | 26 |
| 150 | 300 | 520 | 600 | 125 | 89,4 | 50 | 16 | 50 | 60 | 5000 | 29 |
| 175 | 200 | 455 | 530 | 145 | 96,8 | 58 | 16 | 60 | 60 | 6000 | 37 |
| 175 | 300 | 555 | 630 | 145 | 96,8 | 58 | 16 | 60 | 60 | 6000 | 42 |
| 175 | 400 | 655 | 730 | 145 | 96,8 | 58 | 16 | 60 | 60 | 6000 | 47 |
| 200 | 200 | 495 | 580 | 170 | 113 | 70 | 16 | 65 | 80 | 10000 | 64 |
| 200 | 300 | 595 | 680 | 170 | 113 | 70 | 16 | 65 | 80 | 10000 | 69 |
| 200 | 400 | 695 | 780 | 170 | 113 | 70 | 16 | 65 | 80 | 10000 | 74 |
| 200 | 500 | 795 | 880 | 170 | 113 | 70 | 16 | 65 | 80 | 10000 | 84 |
| 300 | 300 | 635 | 730 | 195 | 120 | 78 | 16 | 80 | 80 | 10000 | 105 |
| 300 | 400 | 735 | 830 | 195 | 120 | 78 | 16 | 80 | 80 | 10000 | 115 |
| Inkl. Spannpratzen, Passsteine, Schlüssel, Handkurbel und Werkstückanschlag / Incl. brackets, T-nuts, wrench, crank and work piece stop |
|||||||||||
| Angaben ohne Gewähr, technische Änderungen vorbehalten / Information provided without guarantee, technical changes reserved |
|||||||||||
Product Safety Information:
- Suitable only for technically skilled users familiar with the product and for craftsmen.
- Intended solely for the designated purpose.
- Improper use may lead to damage and injuries.
Importer/Manufacturer:
Gedema GmbH
Berchumer Str. 74
58093 Hagen
Email: info@messwelt.com
Email: info@gedema.com
Items explicitly stating the manufacturer are excluded.

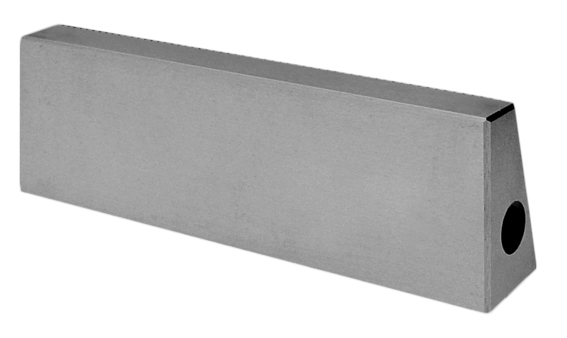

Accessories
