Three point internal micrometer 20-25 mm analogue

Preview: Technical drawing Three point internal micrometer 20-25 mm analogue DIN 863

Three point internal micrometer 20-25 mm analogue DIN 863

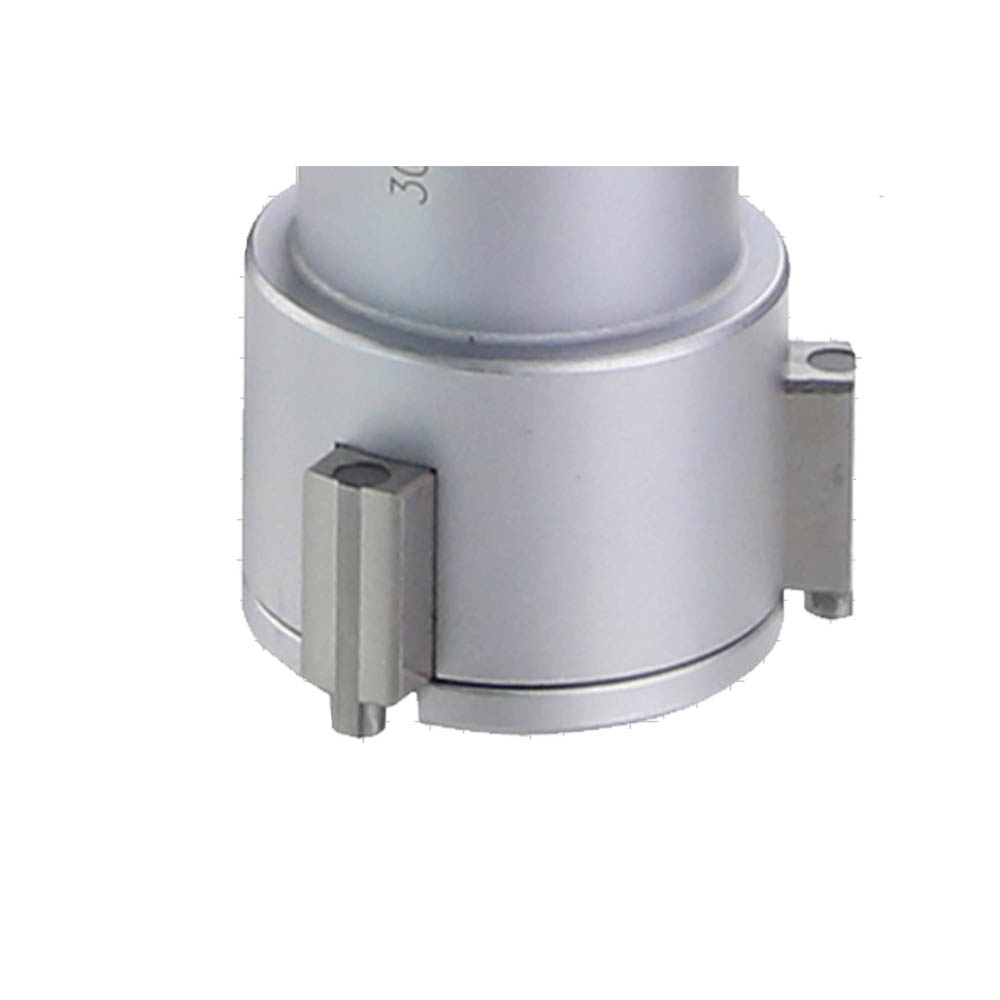

Detail Three point internal micrometer 20-25 mm analogue DIN 863

Technical drawing Three point internal micrometer 20-25 mm analogue DIN 863

€220.80 *

€262.75 incl. VAT

Prices plus VAT plus shipping costs

Ready to ship today,
Delivery time appr. 1-3 workdays

Order number: 312.135
Customs tariff number: 9017 3000
European article number: 4054469119489
Weight: 1,2 kg
In stock: 3

Three point internal micrometer 20-25 mm analogue - with setting gauge 25 mm and extension... more

Close menu

Product information "Three point internal micrometer 20-25 mm analogue DIN 863"

Three point internal micrometer 20-25 mm analogue

- with setting gauge 25 mm and extension 150 x Ø 16,0 mm
- for blind hole
- with carbide measuring faces
- satin chrome finished
- DIN 863
- in case/box

Range 20 - 25 mm

Range:	20 - 25 mm
Type:	analogue, with carbide measuring faces, with setting gauge and extension
usable for measuring of:	blind hole
Reading:	0,005 mm
Accuracy:	0,005 mm

Related links to "Three point internal micrometer 20-25 mm analogue DIN 863"

Messbereich mm Range mm Einstellring mm Standard mm... more

Zurück

Messbereich mm Range mm	Einstellring mm Standard mm	Verlängerung mm Extension mm	A mm	L1 mm	Ablesung mm Reading mm	*Genauigkeit µm Accuracy* µm**
20 - 25	20	150 x Ø 16,0	0,5	91	0,005	0,005
* bei vollanliegenden Messflächen / at full contact of the measuring faces
