Soft top jaw HC12-1 for power chucks

Preview: Soft top jaw HC12-1 for power chucks Preview: Drawing Soft top jaw HC12-1 for power chucks

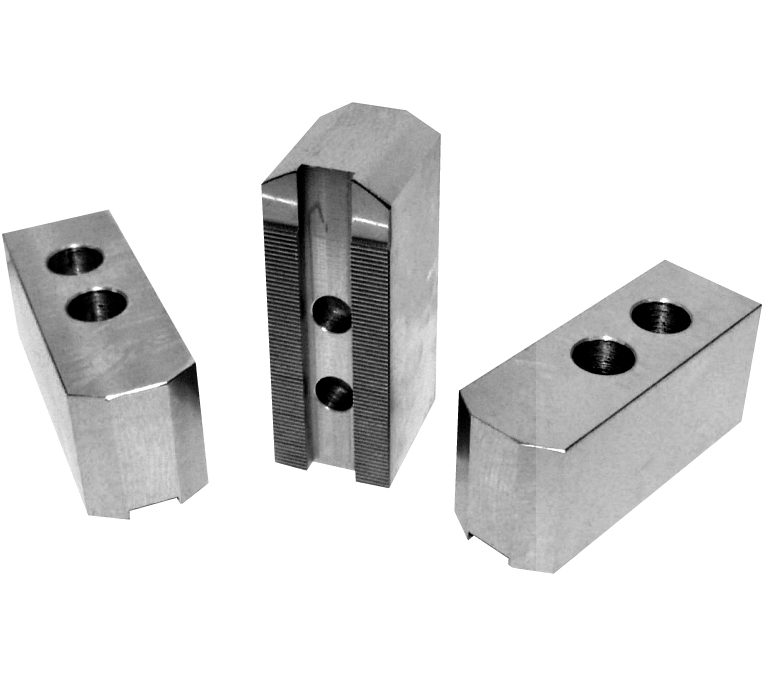

Soft top jaw HC12-1 for power chucks

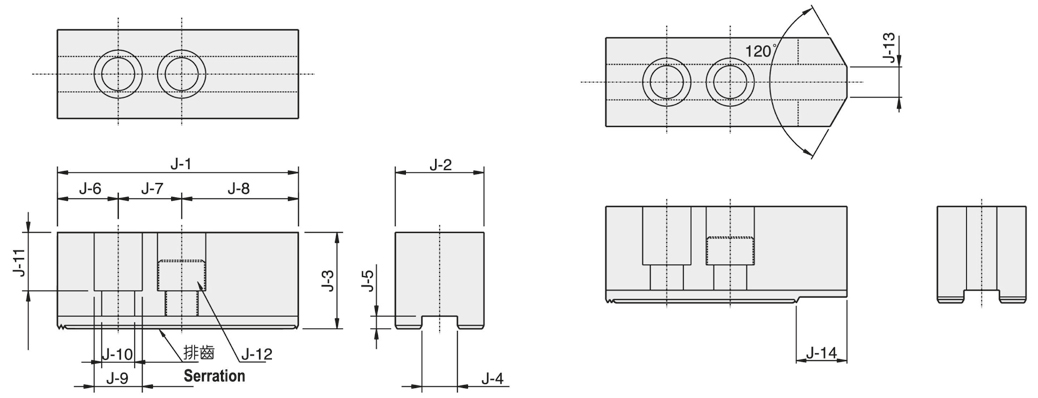

Drawing Soft top jaw HC12-1 for power chucks

€25.18 *
€29.96 incl. VAT

Prices plus VAT plus shipping costs

Ready to ship today,
Delivery time appr. 1-3 workdays

  • Order number: 29-HC-12-1
  • Customs tariff number: 8466 2091
  • European article number: 4049794002452
  • Weight: 2,2 kg
  • In stock: 21
Description Technical data Evaluations 0
Description
Soft top jaw type HC12-1 for hydraulic power chucks - serration 1,5 x 60 ° - jaws... more
Close menu
Product information "Soft top jaw HC12-1 for power chucks"

Soft top jaw type HC12-1 for hydraulic power chucks

- serration 1,5 x 60 °
- jaws compatible with Kitagawa power chucks
- price per piece

Jaws: Soft top jaws
Jaws type: HC12-1
Related links to "Soft top jaw HC12-1 for power chucks"
Technical data
Typ / Type J-1 mm J-2 mm J-3 mm J-4 mm J-5 mm J-6 mm J-7 mm J-8 mm J-9... more
Zurück
Typ /
Type		 J-1
mm		 J-2
mm		 J-3
mm		 J-4
mm		 J-5
mm		 J-6
mm		 J-7
mm		 J-8
mm		 J-9
mm		 J-10
mm		 J-11
mm		 J-12 J-13
mm		 Verzahnung /
Selection
HC04 45,5 23 23 10 4 10 14 25,5 13,5 8,5 14 M8 4 1,5 x 60°
HC05 54 23 25 10 4 12 14 28 13,5 8,5 16 M8 5 1,5 x 60°
HC06 66 32 28 12 5 12 20 34 17 11 16 M10 5 1,5 x 60°
HC08 95 35 38 14 5 24 25 46 19 13 23 M12 12 1,5 x 60°
HC10 110 40 42 16 6 30 30 50 19 13 27 M12 18 1,5 x 60°
HC12 130 50 50 21 6 39 30 60 25 17 30 M16 18 1,5 x 60°
HC12-1 130 50 50 18 6 39 30 60 23 15 30 M14 18 1,5 x 60°
HC-15 165 62 62 22 8 37 43 85 32 21 38 M20  - 1,5 x 60°
HC-15-1 135 50 50 25,5 5 26 43 66 32 21 39 M20  - 1,5 x 60°

Angaben ohne Gewähr, technische Änderungen vorbehalten /
Information provided without guarantee, technical changes reserved
