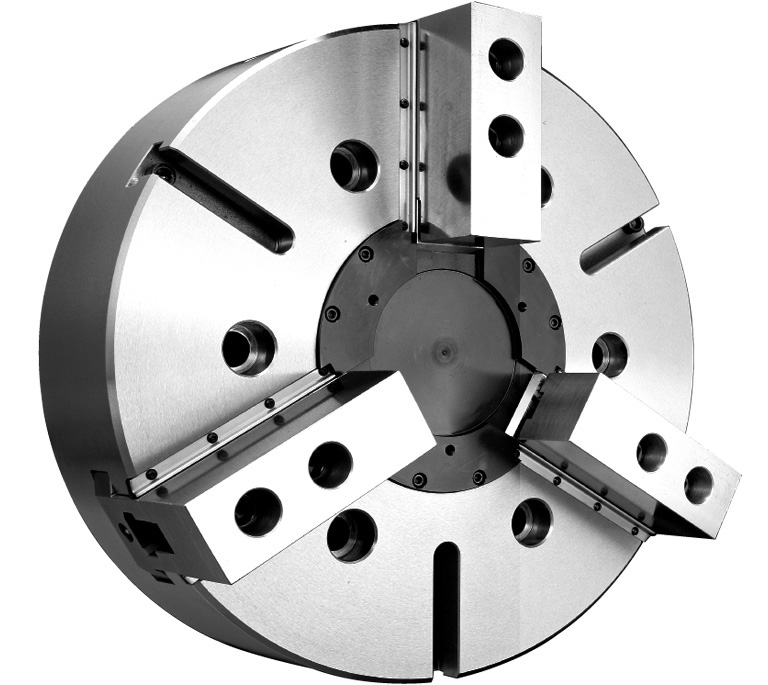

Three-jaw power chuck V-208A5 Ø 210 mm
Product information "Three-jaw power chuck V-208A5 Ø 210 mm"
Three-jaw power chuck V-208A5 DIN 55026,
without bore - serration 1,5 x 60°
- type V-208A5 Ø 210 mm
- steel
- all sliding surfaces are hardened and ground
for high runout precision and long service life
- lubrication nipple in each base jaw
- incl. 1 set each of hardened base jaws and soft top jaws,
fixation screws
| DIN: | 55026 |
|---|---|
| Through hole: | without |
| Type: | 3-jaw lathe chucks |
| Ø : | 210 mm |

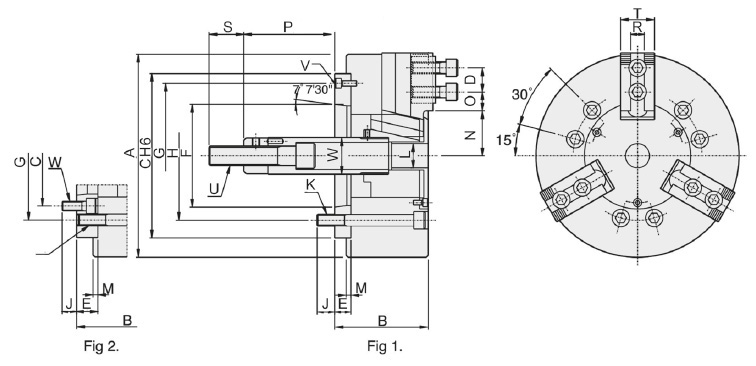

Technical Data
| Typ / Type |
Fig | Backenhub / Jaw stroke mm |
Zugrohrhub / Plunger stroke mm |
Max. Betätigungskraft / Max. pull force (kN) |
Max. Spannkraft / Max. gripping force (kN) |
Max. Betätigungsdruck / Max. operating pessure (kN) |
| V-208A5 | 2 | 8,5 | 21 | 25 | 75 | 25,5 |
| Trägheitsmoment / Moment of inertia (kgf-m2) |
Passende harte Aufsatzbacken / Matching hard jaws |
Passende weiche Aufsatzbacken / Matching soft jaws |
Passender Zylinder / Matching cylinder |
Max. Drehzahl / Max. speed (rpm) |
kg | |
| - | HJ08 | HC08 | MH125 | 4765 | 24,4 | |
| Typ / Type |
A mm |
B mm |
H mm |
D mm |
C(H6) mm |
K | M mm |
J mm |
L mm |
E mm |
F mm |
| V-208A5 | 210 | 103 | 104,78 | 25 | 170 | 6-M12 | 5 | 13 | 25 | 23 | 82,563 |
| G mm |
O max. |
O min. |
P max. |
P min. |
S mm |
U max. |
W mm |
N max. |
T mm |
R mm |
V |
| 133,35 | 22,5 | 9 | 109 | 88 | 36 | M20x2,5 | 38 | 46,3 | 35 | 14 | 6-M10 |
| Inkl. je 1 Satz Grund- und weiche Aufsatzbacken, Befestigungsschrauben / Incl. 1 set each of hardened base jaws and soft top jaws, fixation screws |
|||||||||||
| Angaben ohne Gewähr, technische Änderungen vorbehalten / Information provided without guarantee, technical changes reserved |
|||||||||||
