Quick-change tapping chuck DIN 69871 SK 50, M14-M36

Preview: Quick-change tapping chuck DIN 69871 SK 50, M14-M36 Preview: Drawing Quick-change tapping chuck DIN 69871 SK 50, M14-M36
Quick-change tapping chuck DIN 69871 SK 50, M14-M36

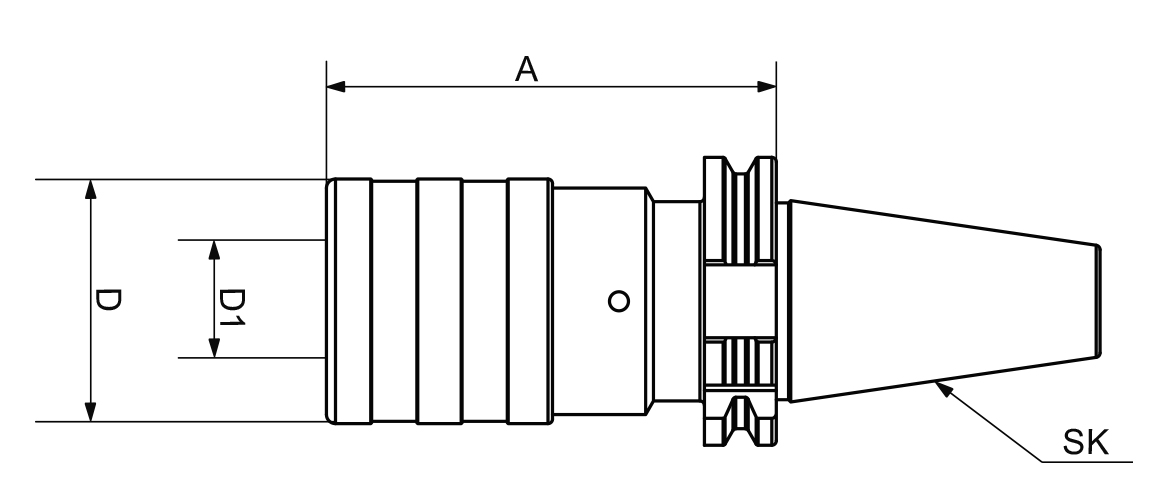

Drawing Quick-change tapping chuck DIN 69871 SK 50, M14-M36

€279.29 *
€332.36 incl. VAT

Prices plus VAT plus shipping costs

Ready to ship today,
Delivery time appr. 1-3 workdays

  • Order number: 76-GSSF-SK50/3
  • Customs tariff number: 8466 1038
  • European article number: 4049794018859
  • Weight: 5,6 kg
  • In stock: 7
Description Technical data Evaluations 0
Description
Quick-change tapping chuck, DIN 69871 - with length compensation - SK 50 - size 3 -... more
Close menu

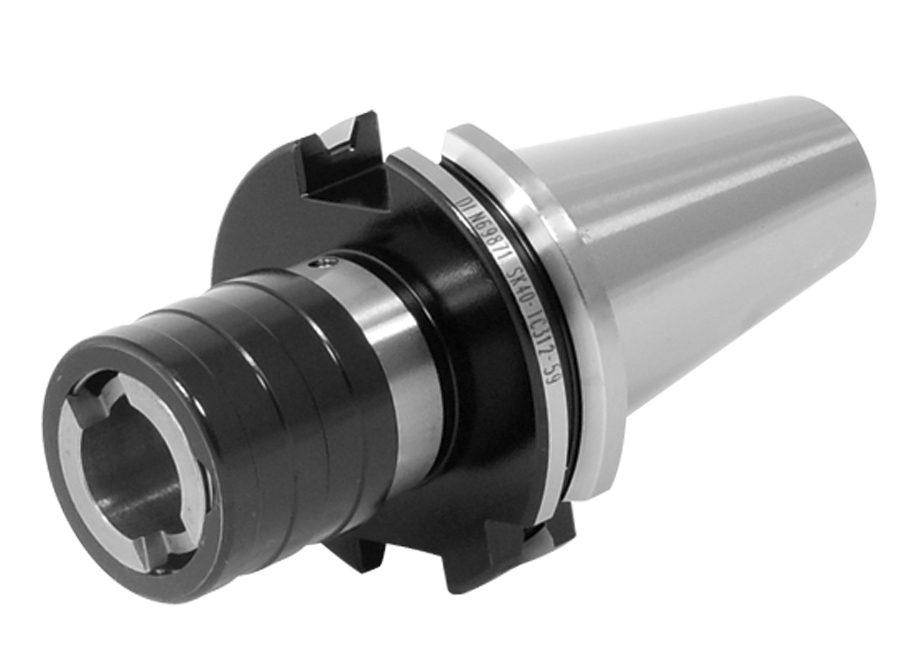

Product information "Quick-change tapping chuck DIN 69871 SK 50, M14-M36"

Quick-change tapping chuck, DIN 69871

- with length compensation
- SK 50
- size 3
- clamping range M14 - M36

Type: Quick-change chucks
DIN: 69871
Size: SK 50
Related links to "Quick-change tapping chuck DIN 69871 SK 50, M14-M36"
Technical data
SK Größe / Size Bereich / Range A mm D mm D1 mm SK 40 1 M3 - M14 59... more
Zurück
SK Größe /
Size		 Bereich /
Range		 A
mm		 D
mm		 D1
mm
SK 40 1 M3 - M14 59 38 19
SK 40 2 M5 - M22 97 54 31
SK 40 3 M14 - M36 156 78 48
SK 50 1 M3 - M14 63 38 19
SK 50 2 M5 - M22 97 54 31
SK 50 3 M14 - M36 140 78 48


Angaben ohne Gewähr, technische Änderungen vorbehalten /
Information provided without guarantee, technical changes reserved
Evaluations 0
Read, write and discuss reviews... more
Close menu
Customer evaluation for "Quick-change tapping chuck DIN 69871 SK 50, M14-M36"
Write an evaluation
Evaluations will be activated after verification.
Please enter these characters in the following text field.

The fields marked with * are required.

Accessories 20 Customers also bought Customers also viewed
Accessories 20

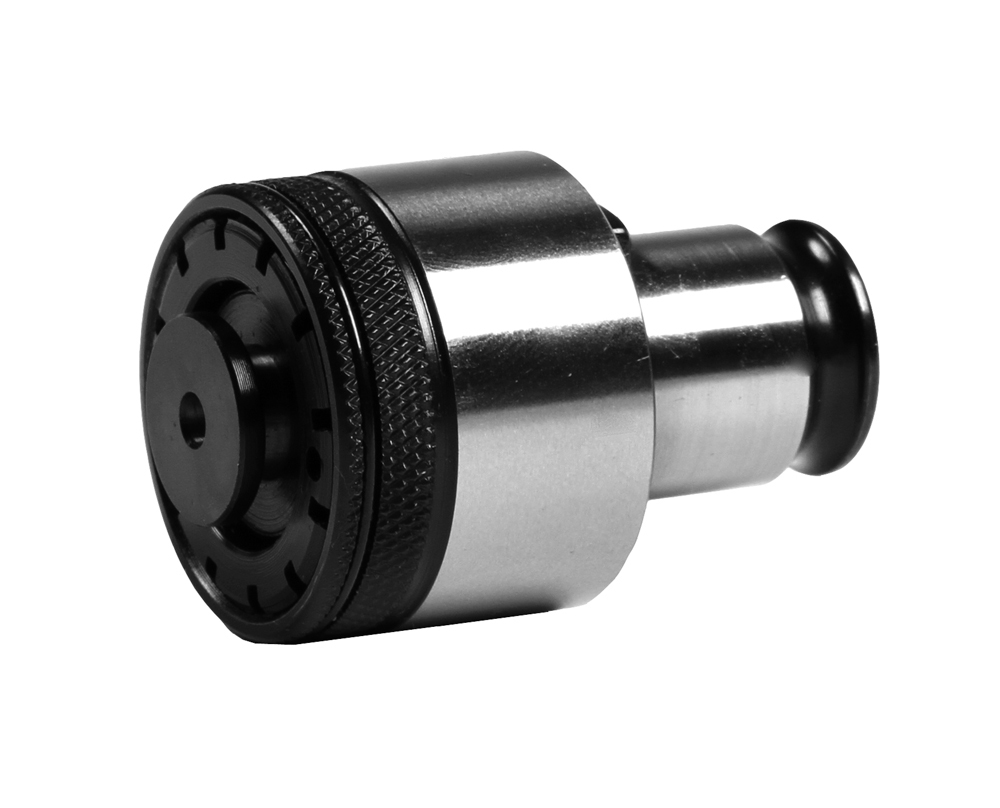

Quick change tapping insert, safety clutch, 3-M14 Quick change tapping insert, safety clutch, 3-M14
€83.95 *
Stock: 4
Quick change tapping insert, safety clutch, 3-M16 Quick change tapping insert, safety clutch, 3-M16
€83.95 *

Quick change tapping insert, safety clutch, 3-M18 Quick change tapping insert, safety clutch, 3-M18
€83.95 *
Stock: 3
Quick change tapping insert, safety clutch, 3-M20 Quick change tapping insert, safety clutch, 3-M20
€83.95 *

Quick change tapping insert, safety clutch, 3-M22 Quick change tapping insert, safety clutch, 3-M22
€83.95 *
Stock: 4
Quick change tapping insert, safety clutch, 3-M24 Quick change tapping insert, safety clutch, 3-M24
€83.95 *
Stock: 5
Quick change tapping insert, safety clutch, 3-M27 Quick change tapping insert, safety clutch, 3-M27
€83.95 *

Quick change tapping insert, safety clutch, 3-M30 Quick change tapping insert, safety clutch, 3-M30
€83.95 *
Stock: 6
Quick change tapping insert, safety clutch, 3-M33 Quick change tapping insert, safety clutch, 3-M33
€83.95 *

Quick change tapping insert, safety clutch, 3-M36 Quick change tapping insert, safety clutch, 3-M36
€83.95 *
Stock: 5

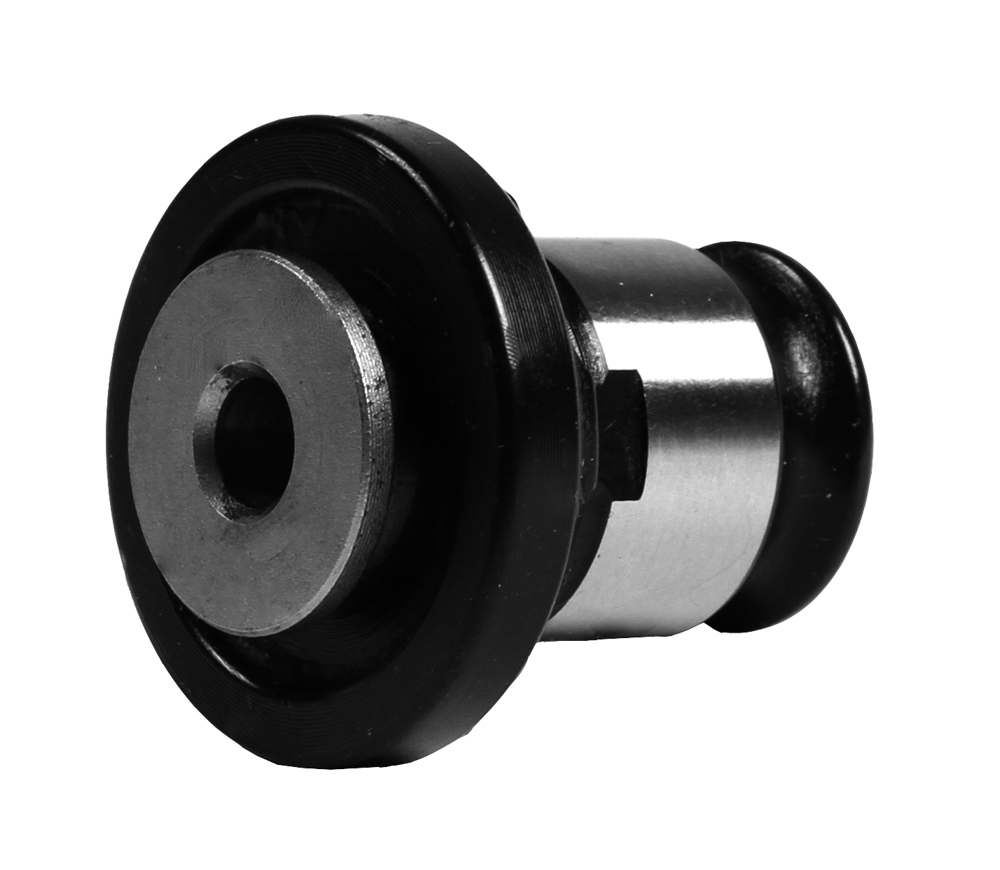

Quick change tapping insert, size 3, thread M14 Quick change tapping insert, size 3, thread M14
