Reversal tapping chuck, B22 capacity M8 - M20
€315.36*
Available, delivery time: 1-3 workdays
Product information "Reversal tapping chuck, B22 capacity M8 - M20"
Reversal tapping chuck, BASIC mounting B22
- automatic feed
- rapid reversal 1,75 : 1
- adjustable safety clutch
- length compensation
- scope of delivery:

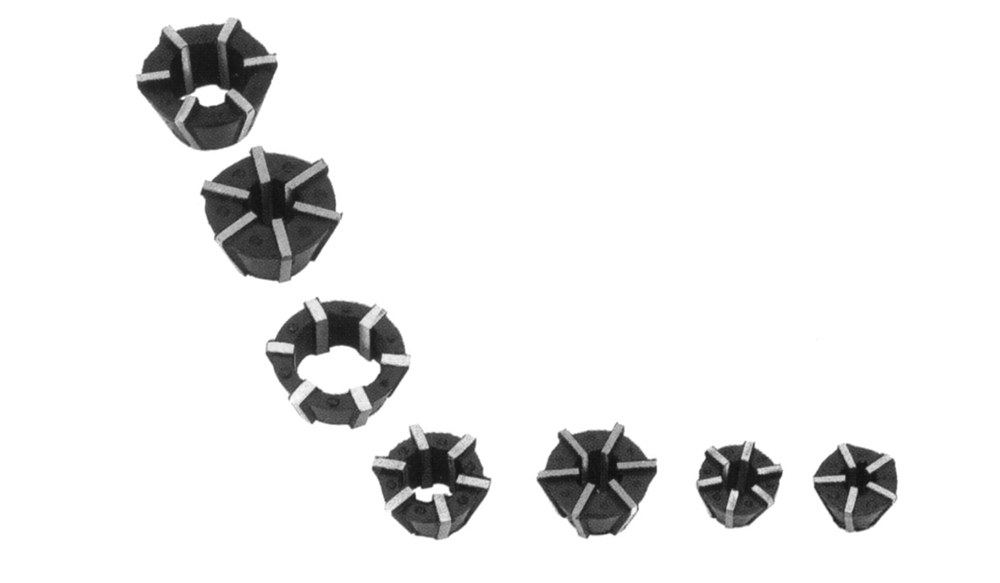

incl. 2 multi-range collets and
all required wrenches
- capacity M8 - M20
Technical Data
| Größe / Size |
Aufnahme / Mounting |
Bereich / Capacity |
Ø D mm |
Max. Drehmoment / Max. torque Nm |
Max. Drehzahl / Max. speed RPM |
| 7 | B16 | M2 – M7 | 55 | 14 | 1500 |
| 12 | B16 | M5 – M12 | 75 | 65 | 1000 |
| 20 | B22 | M8 – M20 | 91 | 125 | 600 |
| Angaben ohne Gewähr, technische Änderungen vorbehalten / Information provided without guarantee, technical changes reserved |
|||||
Product Safety Information:
- Suitable only for technically skilled users familiar with the product and for craftsmen.
- Intended solely for the designated purpose.
- Improper use may lead to damage and injuries.
