Safety hood bilateral, slideable, 1500 mm

Safety hood bilateral, slideable, 1500 mm
€3,247.78 *
€3,864.86 incl. VAT

Prices plus VAT plus shipping costs

Delivery time upon request

  • Order number: ZE-FS22-1500
  • Customs tariff number: 8466 3000
  • European article number: 4049794669181
  • Weight: 165 kg
  • In stock: 0
Description Technical data Evaluations 0
Description
Safety hood bilateral, slideable, extra high 1500 mm - for big chucks up to Ø 1200 mm -... more
Close menu
Product information "Safety hood bilateral, slideable, 1500 mm"

Safety hood bilateral, slideable, extra high 1500 mm

- for big chucks up to Ø 1200 mm
- slideable, bilateral shield
- with safety mirco-switch
- protection against chips, lubricant and coolant
- easy adaption to the head at the machine

Diameter C of the safety hood should be
150-200 mm larger than the lathe chuck.

Related links to "Safety hood bilateral, slideable, 1500 mm"

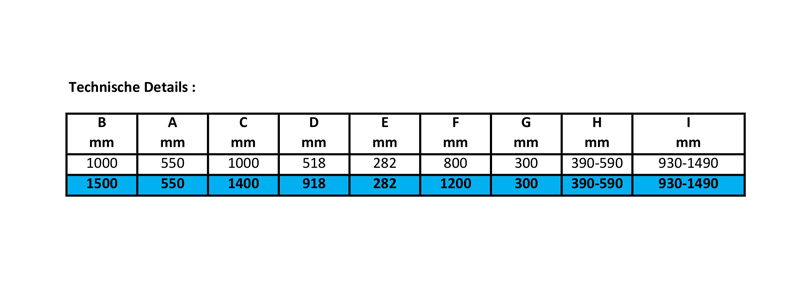

Technical data
Für Futter-Ø / For chuck-Ø A mm B mm C mm D mm E mm F mm G mm H mm... more
Zurück
Für Futter-Ø /
For chuck-Ø		A
mm		B
mm		C
mm		D
mm		E
mm		F
mm		G
mm		H
mm		I
mm
80055010001000518282800300390 – 590930 – 1490
1200550150014009182821200300390 – 590930 – 1490

Angaben ohne Gewähr, technische Änderungen vorbehalten /
Information provided without guarantee, technical changes reserved
