Drill chuck DIN 69871, SK50-16

Preview: Drill chuck DIN 69871, SK50-16 Preview: Drawing Drill chuck DIN 69871, SK50-16
Drill chuck DIN 69871, SK50-16

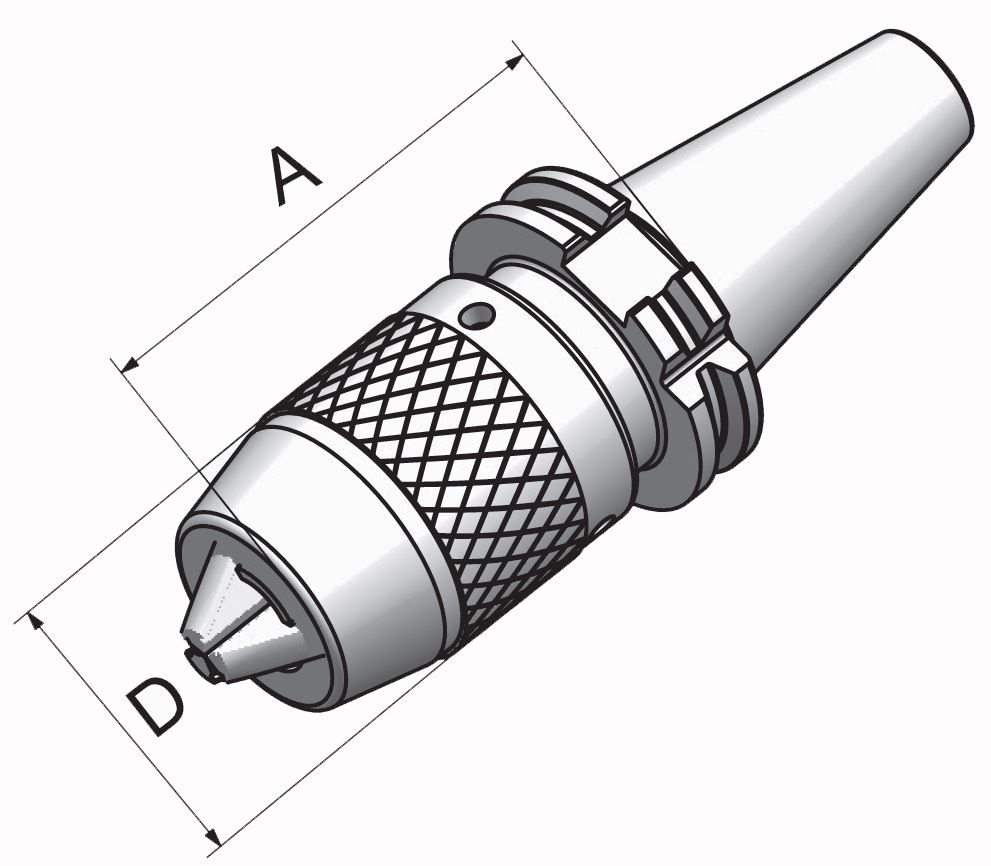

Drawing Drill chuck DIN 69871, SK50-16

€117.94 *
€140.35 incl. VAT

Prices plus VAT plus shipping costs

Ready to ship today,
Delivery time appr. 1-3 workdays

  • Order number: 13-7655-50-16
  • Customs tariff number: 8466 1038
  • European article number: 4049794064818
  • Weight: 3,9 kg
  • In stock: 4
Description Technical data Evaluations 0
Description
Drill chuck SK50-16, DIN 69871 - incl. hook wrench - SK 50 - capacity: 3-16 mm more
Close menu
Product information "Drill chuck DIN 69871, SK50-16"

Drill chuck SK50-16, DIN 69871

- incl. hook wrench
- SK 50
- capacity: 3-16 mm

Tool holders: DIN 69871
Type: Drill chucks
Size: SK 50
Related links to "Drill chuck DIN 69871, SK50-16"
Technical data
Größe / Size Spannweite mm / Capacity mm D mm A mm Rundlaufgenauigkeit mm / Runout... more
Zurück
Größe /
Size		 Spannweite mm /
Capacity mm		 D
mm		 A
mm		 Rundlaufgenauigkeit mm /
Runout mm
SK 40 1 – 13 50 95 0,05
SK 40 3 – 16 57 100 0,05
SK 50 3 – 16 55 115 0,05

Angaben ohne Gewähr, technische Änderungen vorbehalten /
Information provided without guarantee, technical changes reserved
