€22.25 *
€26.48 incl. VAT
Prices plus VAT plus shipping costs
Ready to ship today,
Delivery time appr. 1-3 workdays
- Order number: 01-65-5/3
- Customs tariff number: 8466 1020
- European article number: 4260073570299
- Weight: 2,2 kg
- In stock: 7

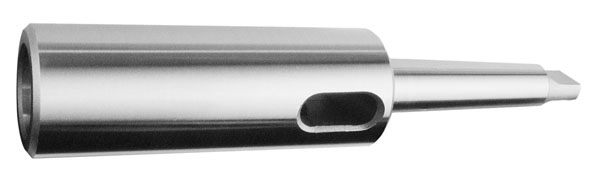

Extension sleeve, DIN 2187 taper 5/3
- external taper 5, internal taper 3 - completely... more
Product information "Extension sleeve DIN 2187, taper 5/3"
Extension sleeve, DIN 2187 taper 5/3
- external taper 5, internal taper 3
- completely hardened and ground
Type: | Extension sleeves |
External taper: | 5 |
Internal taper: | 3 |
Related links to "Extension sleeve DIN 2187, taper 5/3"

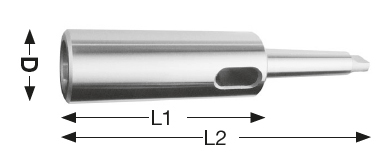

Außenkegel / External taper
Innenkegel / Internal taper
D mm
L1 mm
L2 mm
ca. g... more
Außenkegel / External taper |
Innenkegel / Internal taper |
D mm |
L1 mm |
L2 mm |
ca. g |
1 | 1 | 20 | 83 | 145 | 190 |
1 | 2 | 30 | 98 | 160 | 340 |
2 | 1 | 20 | 85 | 160 | 250 |
2 | 2 | 30 | 100 | 175 | 400 |
2 | 3 | 36 | 121 | 196 | 840 |
2 | 4 | 48 | 145 | 220 | 1300 |
3 | 1 | 20 | 81 | 175 | 400 |
3 | 2 | 30 | 100 | 194 | 550 |
3 | 3 | 36 | 112 | 215 | 1000 |
3 | 4 | 48 | 146 | 240 | 1500 |
4 | 1 | 20 | 82,5 | 200 | 800 |
4 | 2 | 30 | 97,5 | 215 | 850 |
4 | 3 | 36 | 122,5 | 240 | 1300 |
4 | 4 | 48 | 147,5 | 265 | 1900 |
4 | 5 | 63 | 182,5 | 300 | 3310 |
5 | 1 | 20 | 82,5 | 232 | 1800 |
5 | 2 | 30 | 97,5 | 247 | 1900 |
5 | 3 | 36 | 118,5 | 268 | 2150 |
5 | 4 | 48 | 150,5 | 300 | 2750 |
5 | 5 | 63 | 182,5 | 335 | 4200 |
5 | 6 | 82 | 247 | 396 | 640 |
6 | 3 | 36 | 120 | 330 | 4580 |
6 | 4 | 48 | 180 | 355 | 5420 |
6 | 5 | 63 | 180 | 390 | 6750 |
6 | 6 | 82 | 241 | 451 | 11890 |
Angaben ohne Gewähr, technische Änderungen vorbehalten / Information provided without guarantee, technical changes reserved |
