Reducing sleeve DIN 2185, taper 4/2

Reducing sleeve DIN 2185, taper 4/2
€6.62 *
€7.88 incl. VAT

Prices plus VAT plus shipping costs

Ready to ship today,
Delivery time appr. 1-3 workdays

  • Order number: 01-52-4/2
  • Customs tariff number: 8466 1020
  • European article number: 4260073570060
  • Weight: 0,4 kg
  • In stock: 331
Description Technical data Evaluations 0
Description
Reducing sleeve, DIN 2185 taper 4/2 - external taper 4, internal taper 2 - completely... more
Close menu
Product information "Reducing sleeve DIN 2185, taper 4/2"

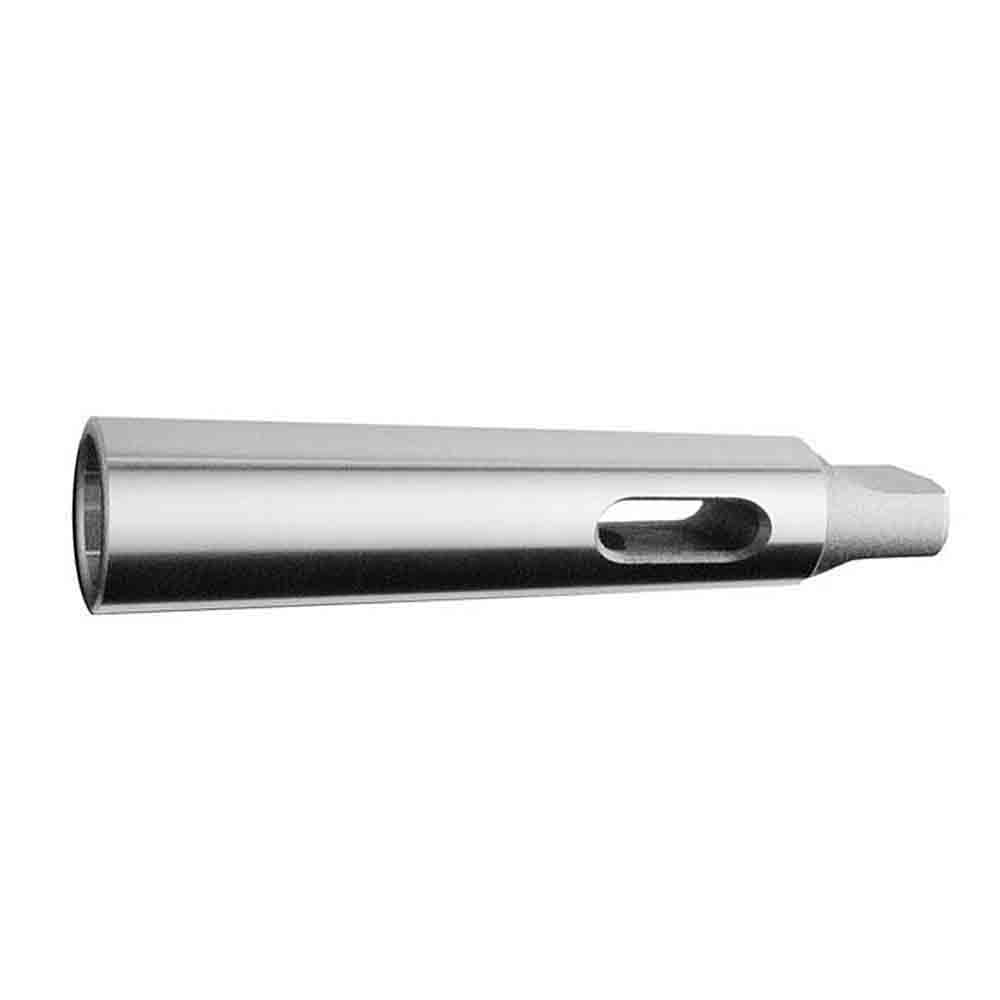

Reducing sleeve, DIN 2185 taper 4/2

- external taper 4, internal taper 2
- completely hardened and ground
- lenght 124 mm

Type: Reducing sleeves
External taper: 4
Internal taper: 2
Related links to "Reducing sleeve DIN 2185, taper 4/2"
Technical data
Außenkegel / External taper Innenkegel / Internal taper L mm ca. g 1 0 80... more
Zurück
Außenkegel /
External taper		 Innenkegel /
Internal taper		 L
mm		 ca.
g
1 0 80 30
2 1 92 95
3 1 99 190
3 2 112 250
4 1 124 550
4 2 124 480
4 3 140 360
5 1 156 1700
5 2 156 1520
5 3 156 1360
5 4 171 950
6 1 218 4400
6 2 218 4300
6 3 218 4100
6 4 218 3600
6 5 218 2550

Angaben ohne Gewähr, technische Änderungen vorbehalten /
Information provided without guarantee, technical changes reserved
