Spindle sleeve with draw-off thread / nut, MT 6/5
€80.64*
€95.96 incl. Vat.
Available, delivery time: 1-3 workdays
Product number:
01-84-6/5
Customs tariff number
8466 1020
European Article Number
4049794004494
Weight
3 kg
Stock:
4
Related links:
Request Item
Product information "Spindle sleeve with draw-off thread / nut, MT 6/5"

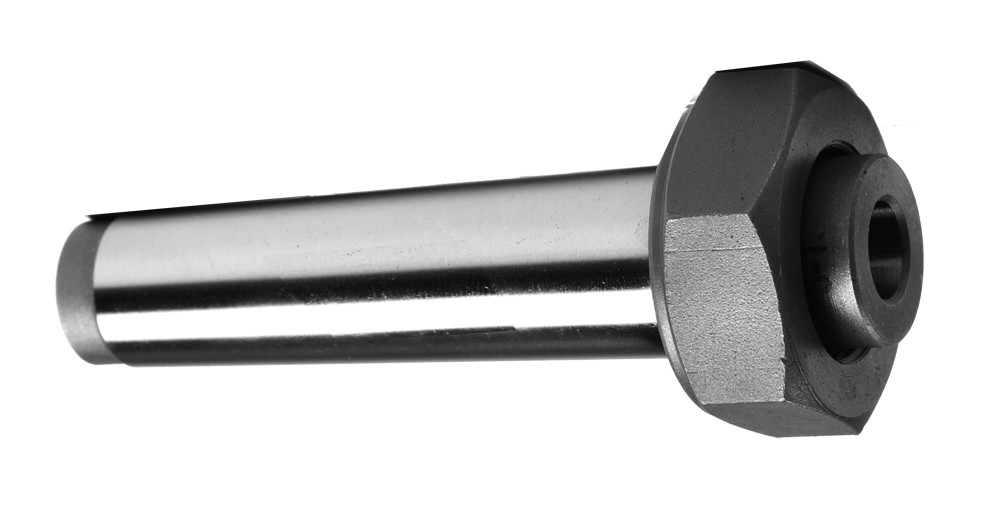

Spindle sleeve with draw-off thread and nut
- spindle sleeve for tools with morse taper
- external taper MT 6
- internal taper MT 5
| External taper: | 6 |
|---|---|
| Internal taper: | 5 |
| Type: | Spindle sleeves |

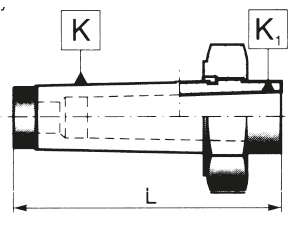

Technical Data
| Außenkegel-MK / External taper-MT |
Innenkegel-MK / Internal taper-MT |
L mm |
| 2* | 1 | 84 |
| 3* | 1 | 102 |
| 4* | 1 | 122 |
| 3 | 2 | 102 |
| 4 | 2 | 122 |
| 4 | 3 | 122 |
| 5 | 2 | 153 |
| 5 | 3 | 153 |
| 5 | 4 | 153 |
| 6 | 4 | 212 |
| 6 | 5 | 212 |
| * mit Austreibschlitz / with drift slot | ||
| Angaben ohne Gewähr, technische Änderungen vorbehalten / Information provided without guarantee, technical changes reserved |
||
