Spindle sleeve with draw-off thread / nut, MT 4/1

Preview: Spindle sleeve with draw-off thread / nut, MT 4/1 Preview: Drawing Spindle sleeve with draw-off thread / nut, MT 4/1
Spindle sleeve with draw-off thread / nut, MT 4/1

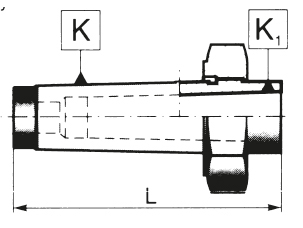

Drawing Spindle sleeve with draw-off thread / nut, MT 4/1

€52.20 *
€62.12 incl. VAT

Prices plus VAT plus shipping costs

Ready to ship today,
Delivery time appr. 1-3 workdays

  • Order number: 01-84-4/1
  • Customs tariff number: 8466 1020
  • European article number: 4049794036709
  • Weight: 0,85 kg
  • In stock: 8
Description Technical data Evaluations 0
Description
Spindle sleeve with draw-off thread and nut - spindle sleeve for tools with morse taper -... more
Close menu
Product information "Spindle sleeve with draw-off thread / nut, MT 4/1"

Spindle sleeve with draw-off thread and nut

- spindle sleeve for tools with morse taper
- external taper MT 4 (with drift slot)
- internal taper MT 1

Type: Spindle sleeves
External taper: 4
Internal taper: 1
Related links to "Spindle sleeve with draw-off thread / nut, MT 4/1"
Technical data
Außenkegel-MK / External taper-MT Innenkegel-MK / Internal taper-MT L mm... more
Zurück
Außenkegel-MK /
External taper-MT		 Innenkegel-MK /
Internal taper-MT		 L
mm
 2* 1 84
 3* 1 102
 4* 1 122
3 2 102
4 2 122
4 3 122
5 2 153
5 3 153
5 4 153
6 4 212
6 5 212

* mit Austreibschlitz / with drift slot

Angaben ohne Gewähr, technische Änderungen vorbehalten /
Information provided without guarantee, technical changes reserved
