Tap holder for Weldon chucks 32 / 18,0 mm

Preview: Tap holder for Weldon chucks 32 / 18,0 mm Preview: Drawing Tap holder for Weldon chucks 32 / 18,0 mm
Tap holder for Weldon chucks 32 / 18,0 mm

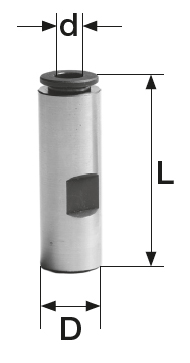

Drawing Tap holder for Weldon chucks 32 / 18,0 mm

€37.30 *
€44.39 incl. VAT

Prices plus VAT plus shipping costs

Ready to ship today,
Delivery time appr. 1-3 workdays

  • Order number: 09-GBE-32/18,0
  • Customs tariff number: 8466 1020
  • European article number: 4049794675090
  • Weight: 0,4 kg
  • In stock: 5
Description Technical data Evaluations 0
Description
Tap holder for Weldon chucks - to use tapping collets with internal square   in... more
Close menu
Product information "Tap holder for Weldon chucks 32 / 18,0 mm"

Tap holder for Weldon chucks

- to use tapping collets with internal square
  in weldon chucks
- with quick change mechanism

D: 32 mm
d: 18,0 mm
square: 14,5 mm

Type: Tap holders for Weldon chucks
Ø : 32 mm
Bore Ø mm: 18
Related links to "Tap holder for Weldon chucks 32 / 18,0 mm"
Technical data
D mm d mm Vierkant / Square mm L mm 16 3,5 2,7 56 16 4,0 3,0... more
Zurück
D
mm		 d
mm		 Vierkant /
Square mm		 L
mm
16 3,5 2,7 56
16 4,0 3,0 56
16 4,5 3,4 56
16 6,0 4,9 56
20 4,5 3,4 58
20 6,0 4,9 58
20 7,0 5,5 58
20 8,0 6,2 58
20 9,0 7,0 58
20 10,0 8,0 58
25 4,5 3,4 66
25 6,0 4,9 66
25 7,0 5,5 66
25 8,0 6,2 66
25 9,0 7,0 66
25 10,0 8,0 66
25 11,0 9,0 66
25 12,0 9,0 66
32 10,0 8,0 70
32 11,0 9,0 70
32 12,0 9,0 70
32 14,0 11,0 70
32 16,0 12,0 70
32 18,0 14,5 70

Angaben ohne Gewähr, technische Änderungen vorbehalten /
Information provided without guarantee, technical changes reserved
